Specification
SPECIFICATION

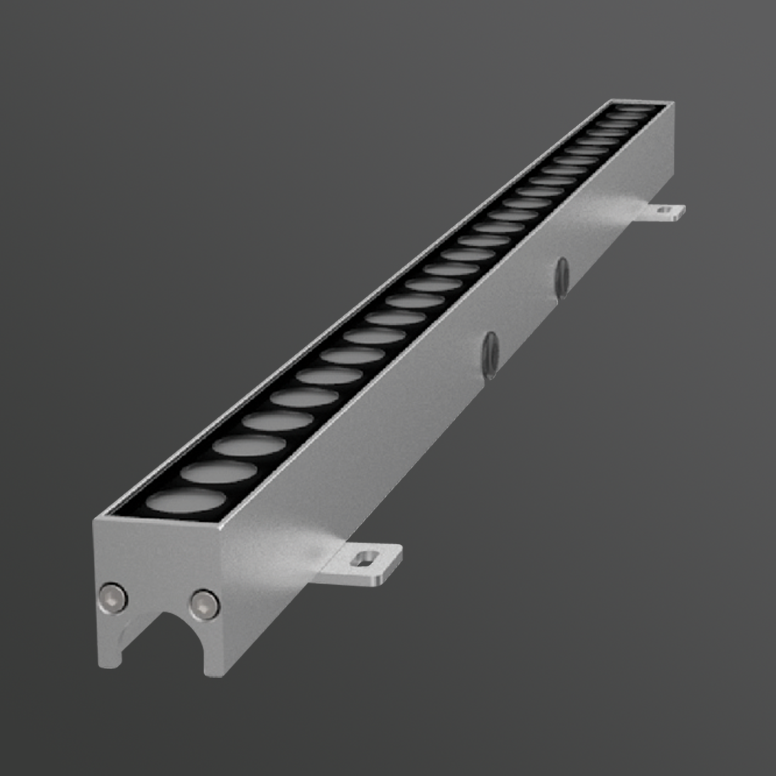

| MODEL | LINEAR SLIM PL DC |
| OPERATING VOLTAGE | 24V DC |
| POWER CONSUMPTION | 4W/305mm, 14W/1220mm |
| LED TYPE | SMD, High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 61Im/W@3000K |

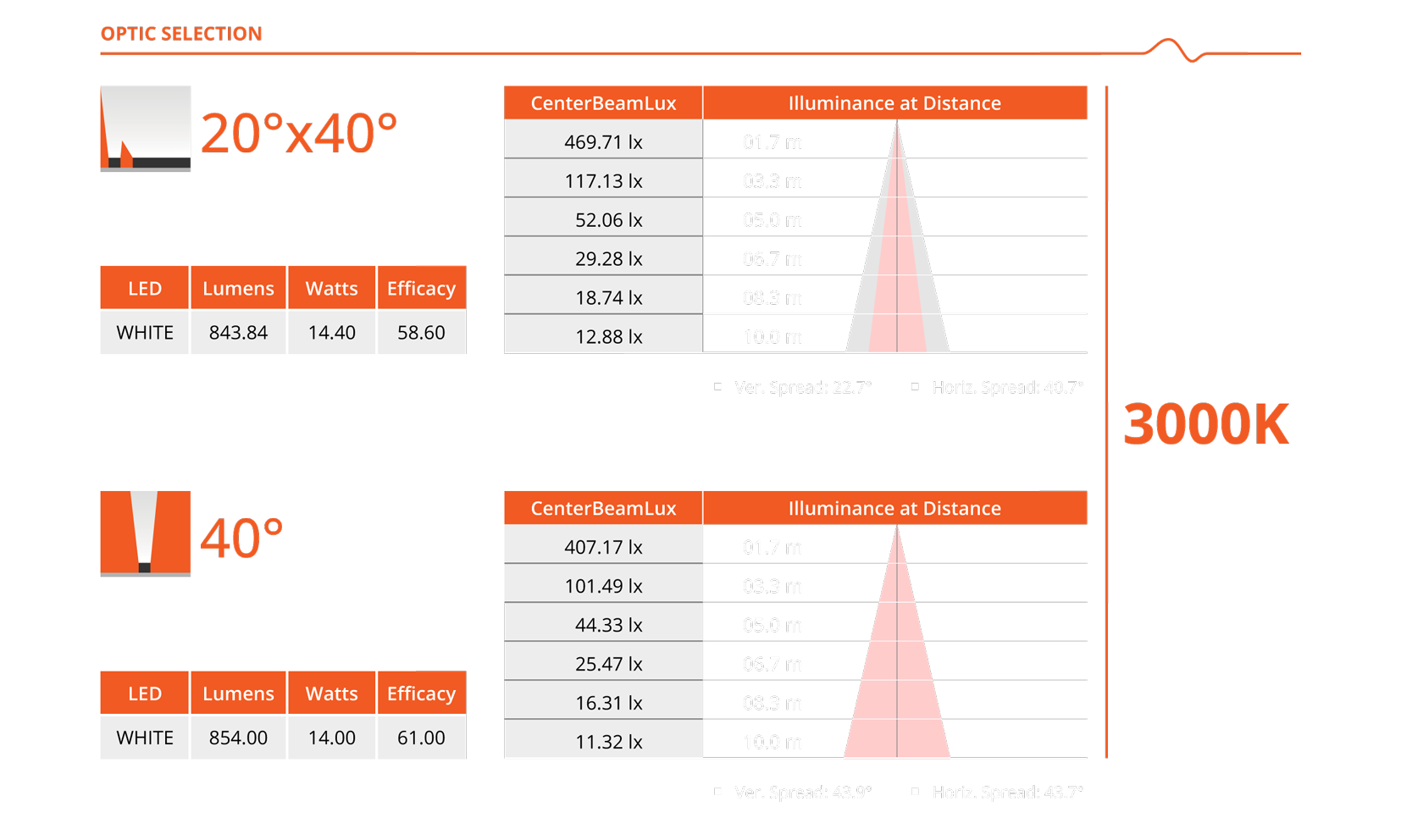

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 10°*40°, 20°*40°, 40° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 1220(L)*25(W)*31(H)mm(Flat Bracket), 1220(L)*25(W)*49(H)mm(Adjustable Bracket), 305/610/915/1000mm available |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DMX/RDM, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
