Specification
SPECIFICATION
| MODEL | INSTA LINEAR PL DC MINI |
| OPERATING VOLTAGE | 24V DC, 48V DC |
| POWER CONSUMPTION | 12W/1000mm, 14W/1000mm (8PXL/M, 16PXL/M) |
| LED TYPE | SMD, High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 61lm/W@3000K |
| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 10°*40°, 20°, 20°*40°, 25°, 40°, 60°, 120° |
| MATERIAL | Aluminum + Tempered Glass |
| OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |

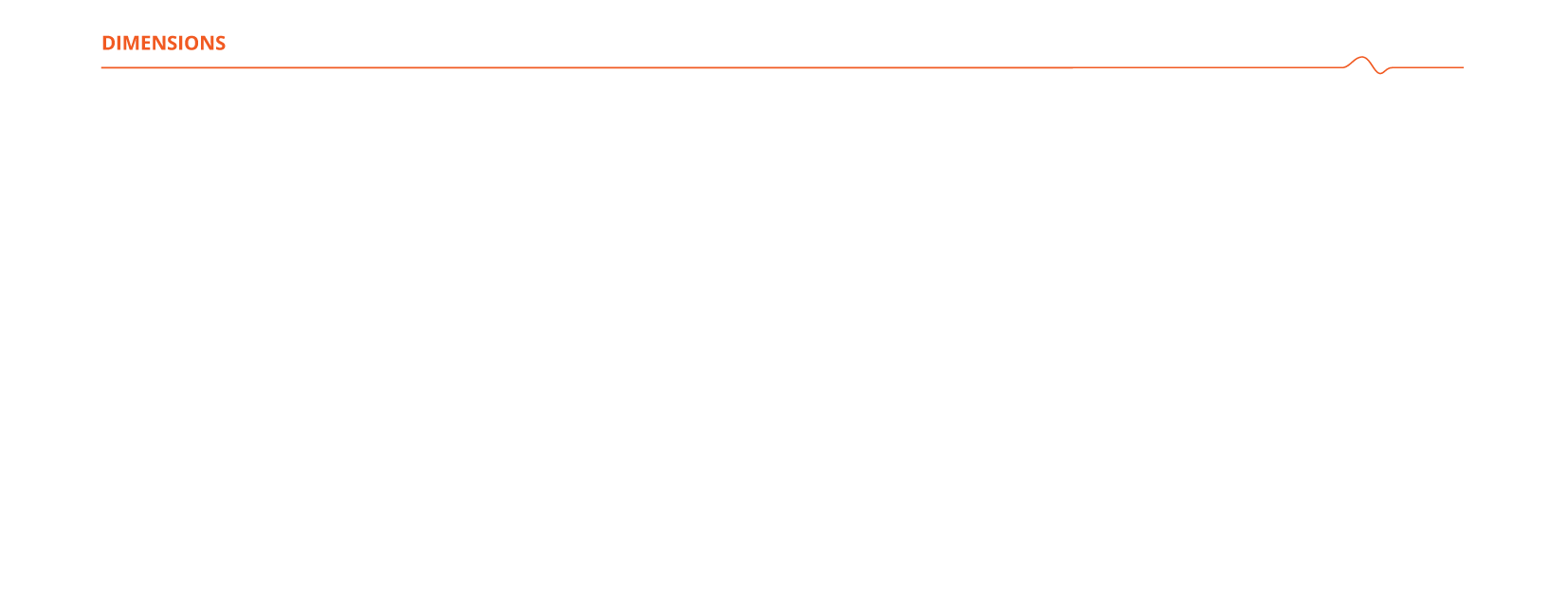

| DIMENSIONS | 1000(L)*28(W)*35(H)mm (Flat Bracket), 1000(L)*28(W)*47(H)mm (Adjustable Bracket), 300/450/500/1200mm available |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DMX/RDM, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66, IP67 |
