Specification
SPECIFICATION
| MODEL | INSTA LINEAR PH DC |
| OPERATING VOLTAGE | 24V DC, 48V DC |
| POWER CONSUMPTION | 48W/1000mm Max (6 PXL/M) |
| LED TYPE | High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 76lm/W@3000K |

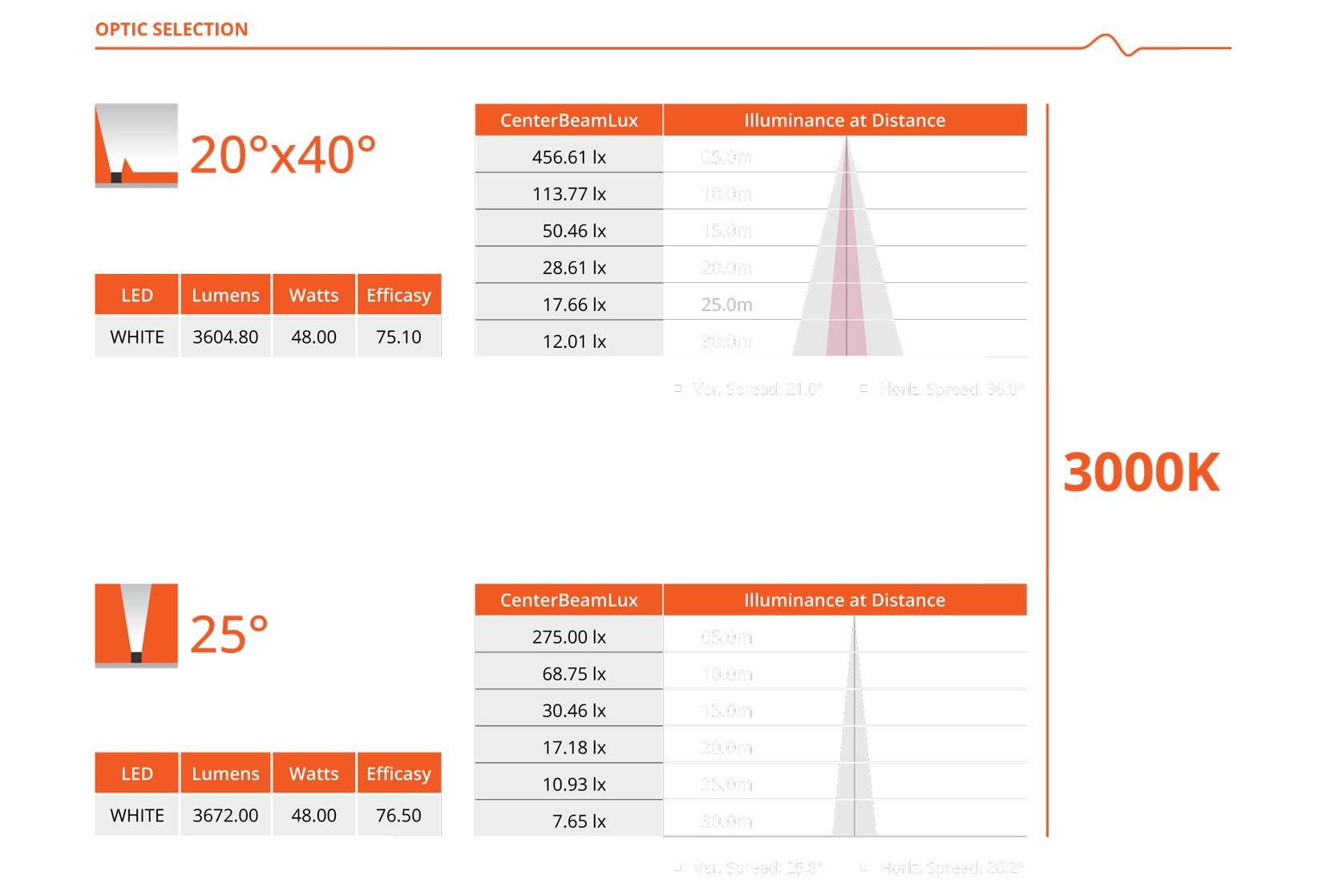

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | Tilt 2.5@11°, 6°, 8°*15°, 8°*30°, 8°*50°, 20°*40°, 25°, 45°, 60° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 1000(L)*40(W)*73(H)mm (Adjustable Bracket), 1000(L)*40(W)*87(H)mm (Adjustable Bracket with Barn Door), 300/450/500/1200mm available |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DMX, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66, IP67 |
