Specification
SPECIFICATION

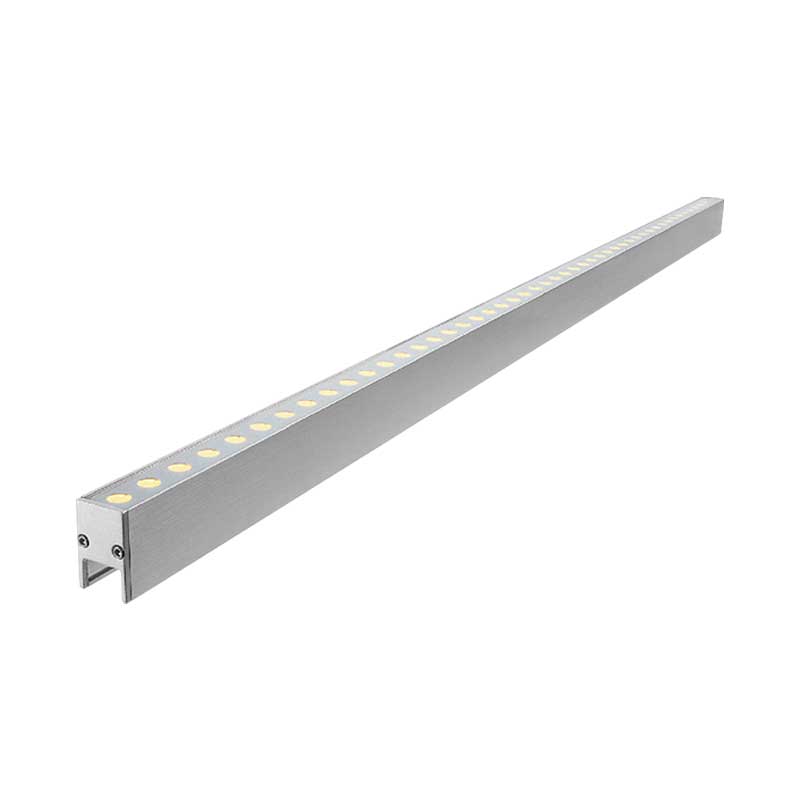

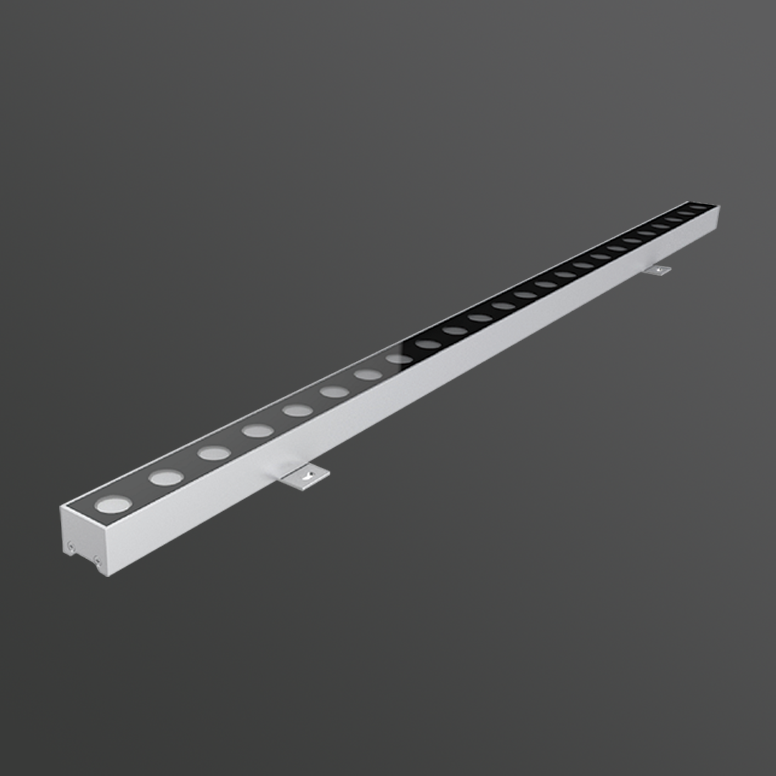

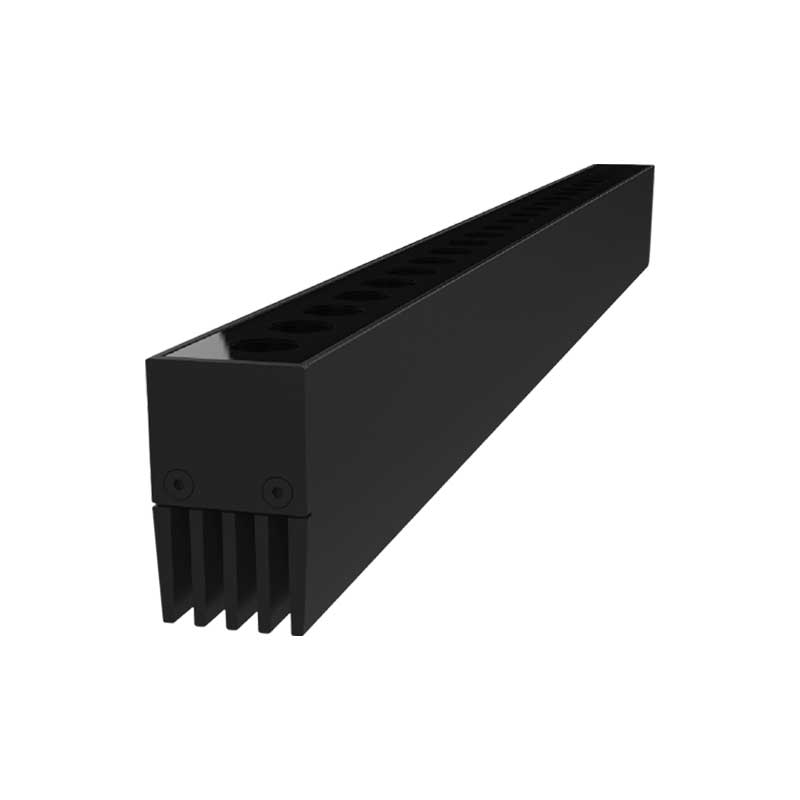

| MODEL | INSTA LINEAR PM DC |
| OPERATING VOLTAGE | 24V DC |
| POWER CONSUMPTION | 24W/1000mm, 36W/1000mm (1PXL/M, 4PXL/M, 8PXL/M) |
| LED TYPE | SMD, High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 3500K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 83lm/W@3000K |
| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 10°*40, 12°(Tilt 2.5°), 20°*40°, 35 °, 60°, 120° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 1000(L)*35(W)*33(H)mm (Flat Bracket), 1000(L)*35(W)*55(H)mm (Adjustable Bracket), 300/500/900/1200mm available |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DMX/RDM, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
