Specification
SPECIFICATION
| MODEL | LINEAR SLIM PH DC |
| OPERATING VOLTAGE | 24V DC, 48V DC |
| POWER CONSUMPTION | 50W/990mm |
| LED TYPE | High Power LED |
| COLOUR TEMP OPTION | 2700K 3000K, 4000K, 5000K, 6500K RGB, RGBW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 75Im/W@3000K |

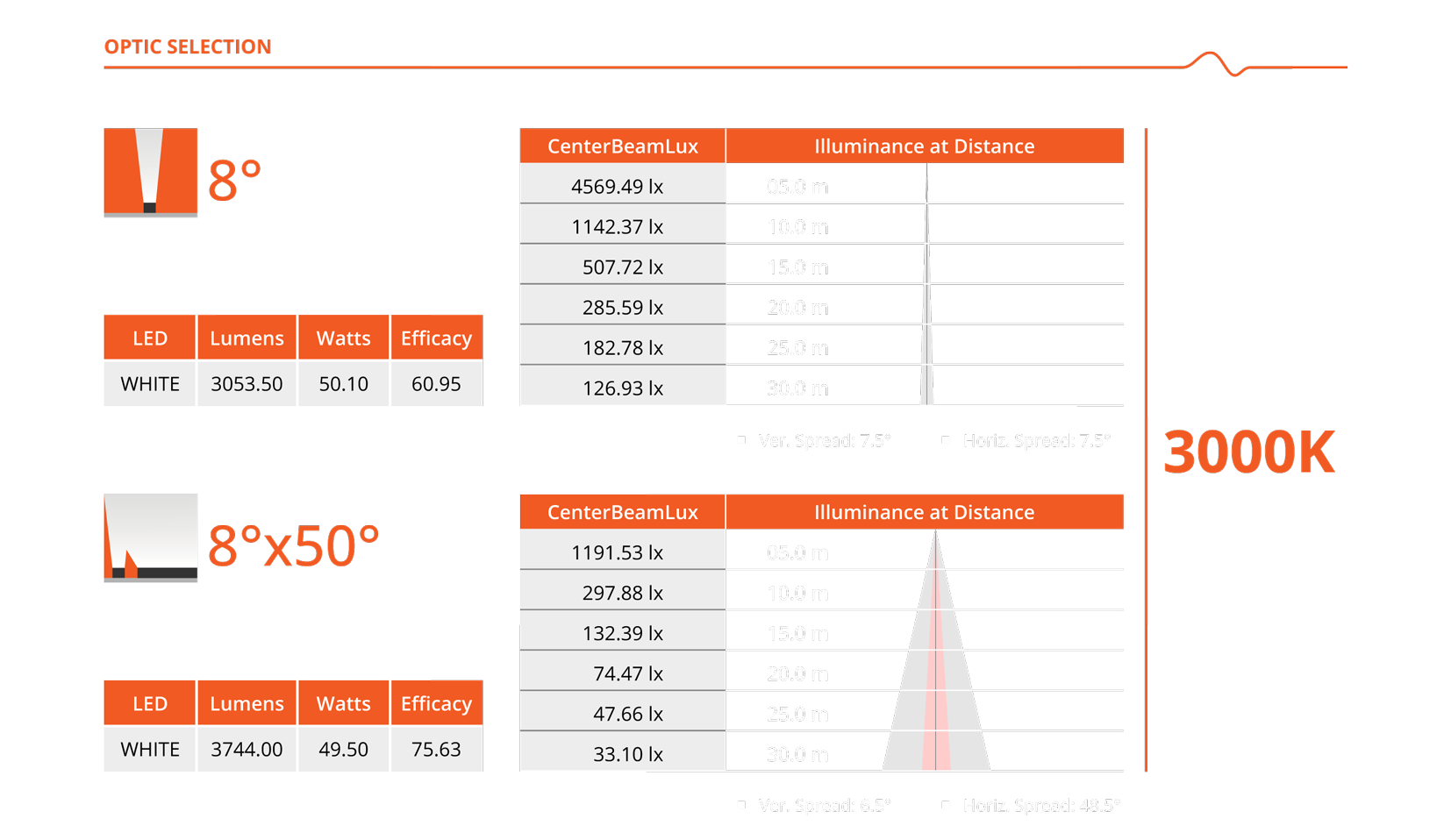

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 8°, 8°*15°, 8°*30°, 8°*50°, 20°*40°, 30°, 40° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 990(L)*30 (W)*50 (H)mm, 990(L)*34 (W)*69 (H)mm (Louver on Top), 255/500/745/1235mm available |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DMX/RDM, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
