Specification
SPECIFICATION
| MODEL | LINEAR SLIM PM G3 |
| OPERATING VOLTAGE | AC 100-240V |
| POWER CONSUMPTION | 100W/1220mm Unit, 300W/1220mm 3Units |
| LED TYPE | 5 in 1 High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 3500K, 4000K, 5000K, RGB, RGBW, RGBWW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 68Im/W@3000K |

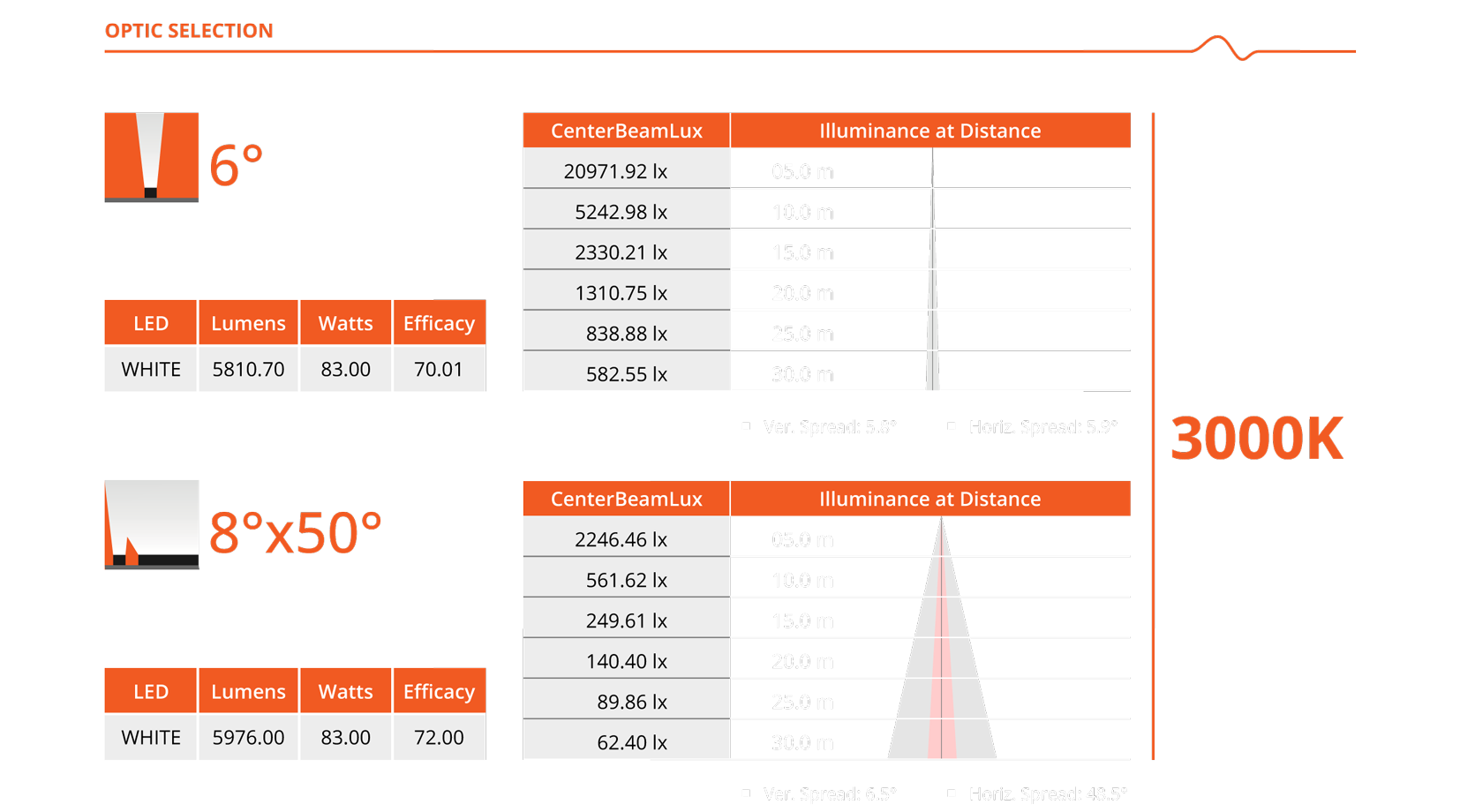

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 6°, 8°*15°, 8°*30°, 8°*50°, 20°*40°, 25°, 30°*60°, 40° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |

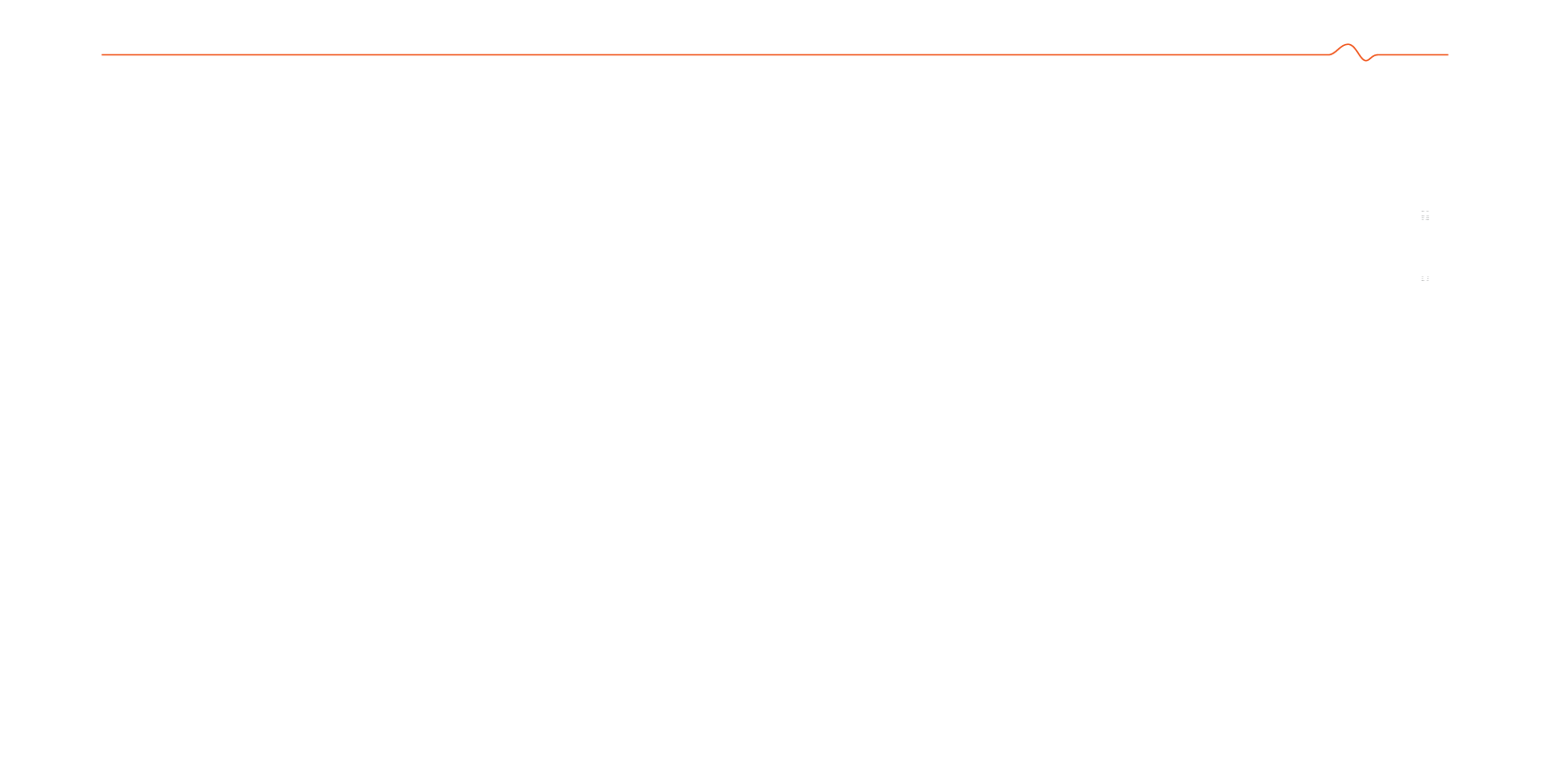

| DIMENSIONS | 1220(L)*62(W)*114(H)mm, 305/610/915/1000mm available |
| CABLE LENGTH | 150mm |
| CONTROL SYSTEM | ON/OFF, DMXIRDM, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
