Specification
SPECIFICATION
| MODEL | LINEAR PH AC |
| OPERATING VOLTAGE | AC 100-240V |
| POWER CONSUMPTION | 16W/320mm, 64W/ 1220mm |
| LED TYPE | High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 75Im/W@3000K |

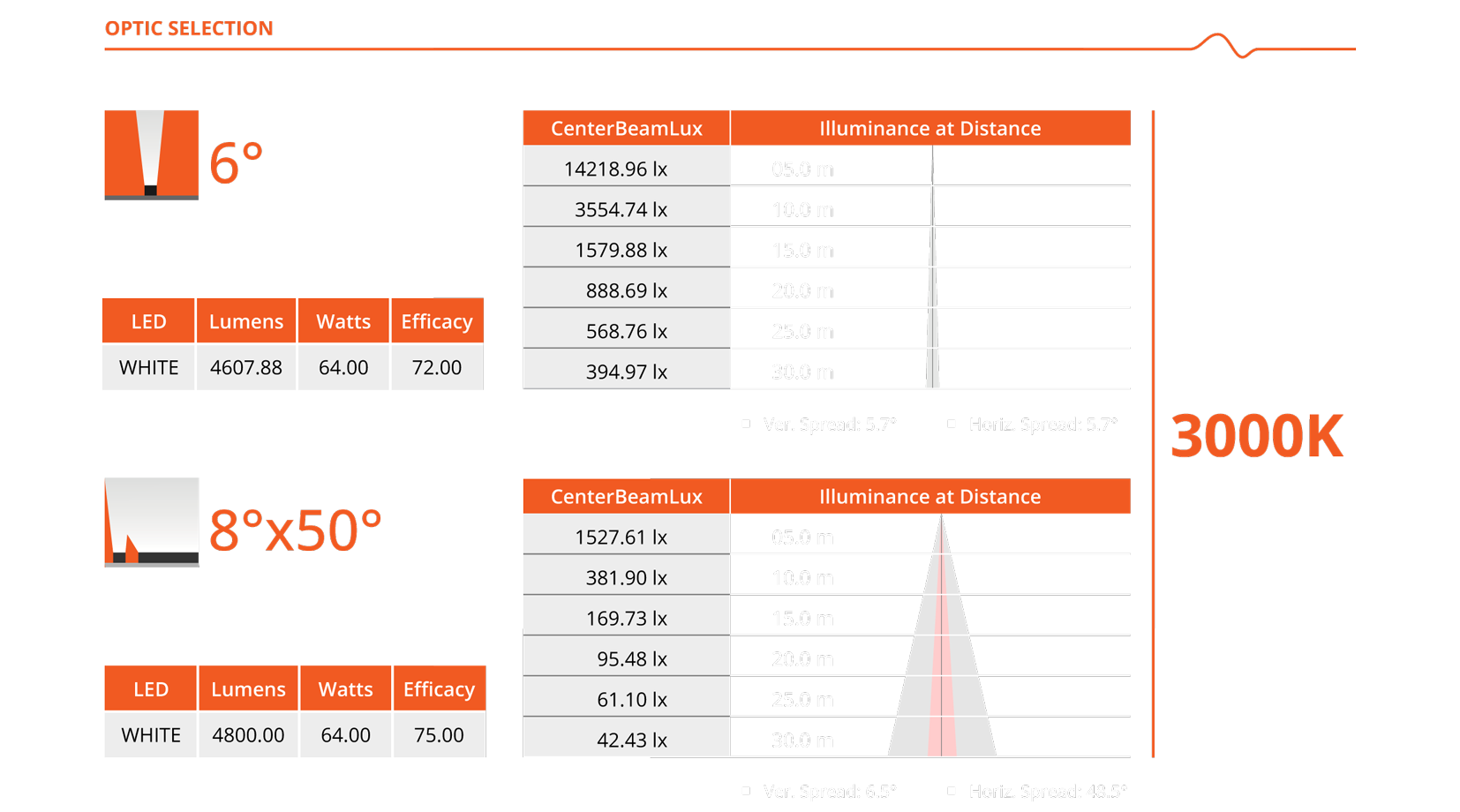

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | Tilt 2.5@11°, 6°, 8°*15°, 8°*30°, 8°*50°, 20°*40°, 25°, 45°, 60° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 1220(L)*50(W)*74(H)mm, 320/620/920mm available |
| CABLE LENGTH | 150mm |
| CONTROL SYSTEM | ON/OFF, DMXIRDM, TRIAC Dim, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
