Specification
SPECIFICATION

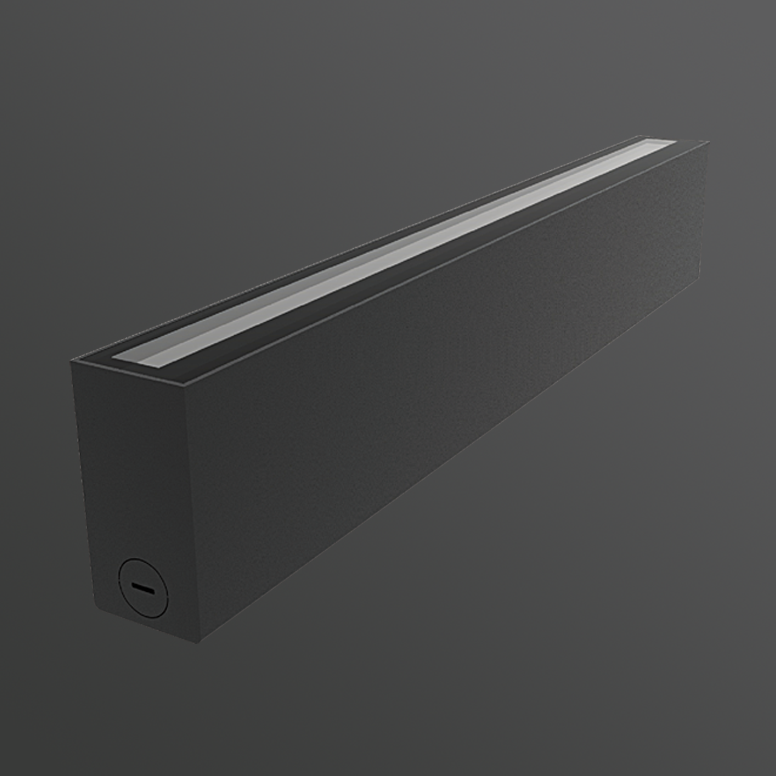

| MODEL | INGRAZE 80 |
| OPERATING VOLTAGE | 24V DC |
| POWER CONSUMPTION | 32W/I000mm |
| LED TYPE | SMD |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 55lm/W@3000K |

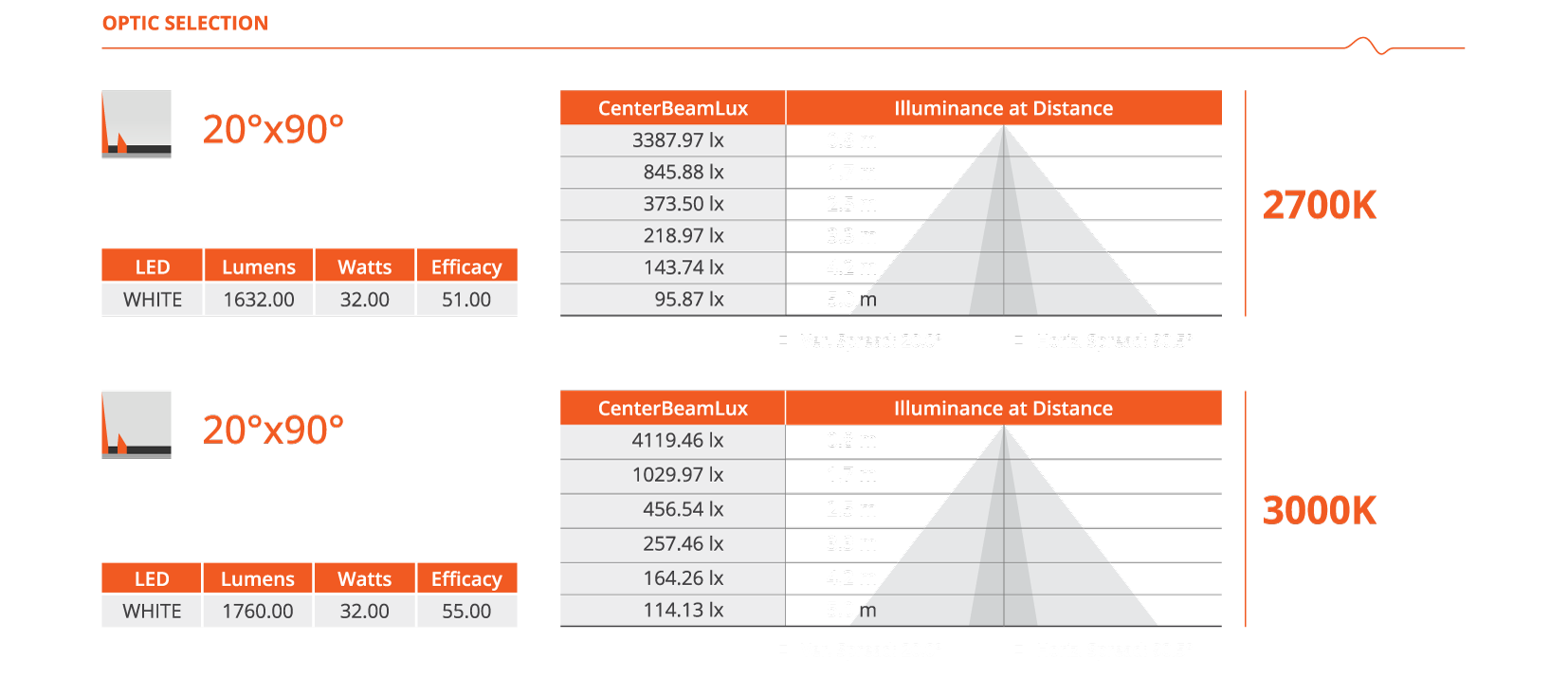

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 20°*90°, 40°*90°, 60° |
| MATERIAL | Aluminum + Tempered Glass + Stainless Steel |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 1000(L)*80 (W)*110(H)mm, 300/600/900/1200mm ETO available |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DMX/RDM, 0-10V Dim |
| MOUNTING TYPE | Surface/Recessed |
| IP RATING | IP67, IK10 |
