Specification
SPECIFICATION
| MODEL | DOT 48 |
| OPERATING VOLTAGE | 24V DC |
| POWER CONSUMPTION | 3W Max (25 PXL Max/M) |
| LED TYPE | SMD |
| COLOUR TEMP OPTION | 2700K 3000K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 80min |
| PRODUCT EFFICACY | 69Im/W@3000K |

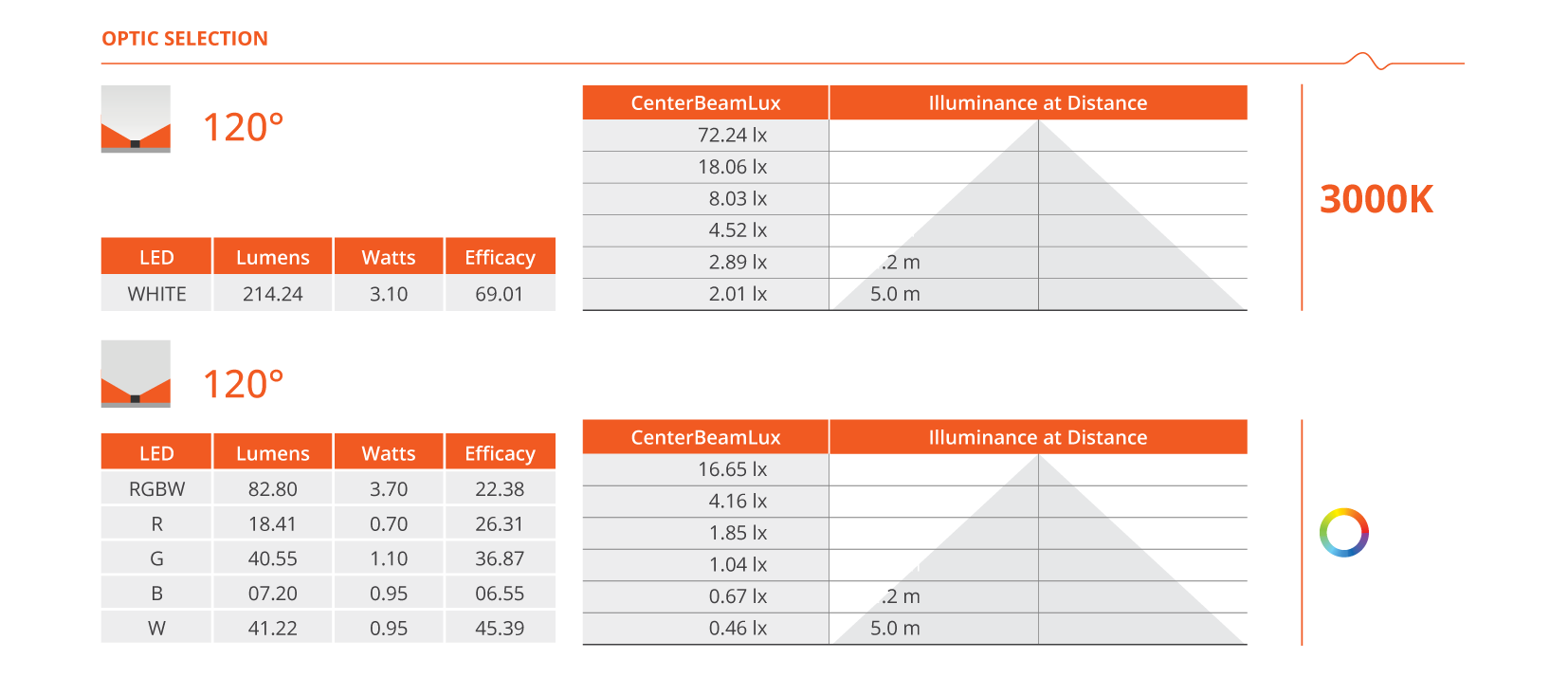

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 120° |
| MATERIAL | Aluminum + PMMA Cover |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | Ø48*48(H)mm(Frosted Dome Cover), Ø48*37(H)mm(Cear Flat Cover) |
| CABLE LENGTH | 500mm |
| CONTROL SYSTEM | ON/OFF, DMX/RDM |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
