Specification
SPECIFICATION

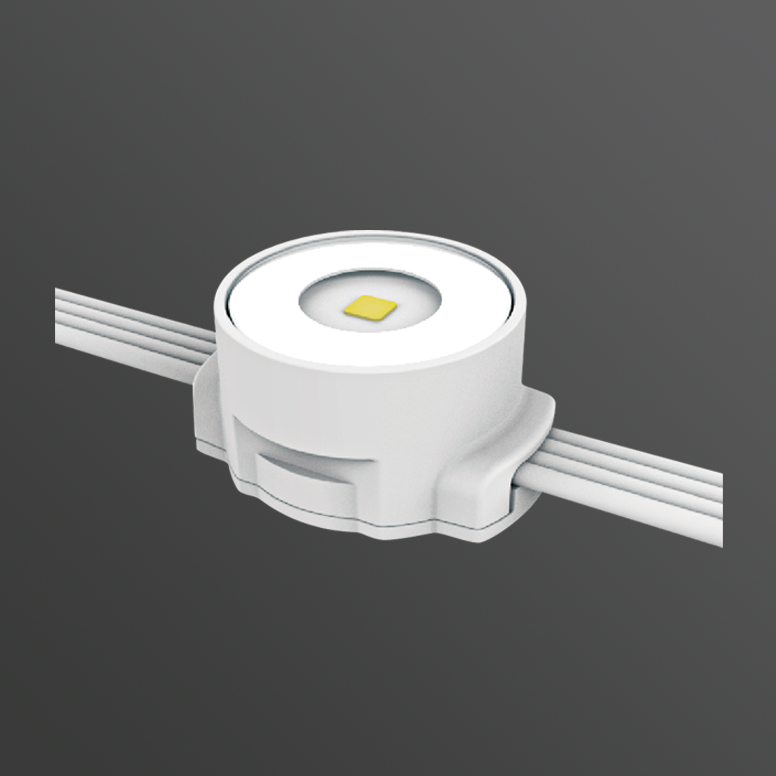

| MODEL | DOT 26 |
| OPERATING VOLTAGE | 12V DC |
| POWER CONSUMPTION | 0.5W Max (32 PXL Max/500mm) |
| LED TYPE | SMD |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW, RGBA |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 64Im/W@3000K |
| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 120° |
| MATERIAL | Aluminum + PC |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |

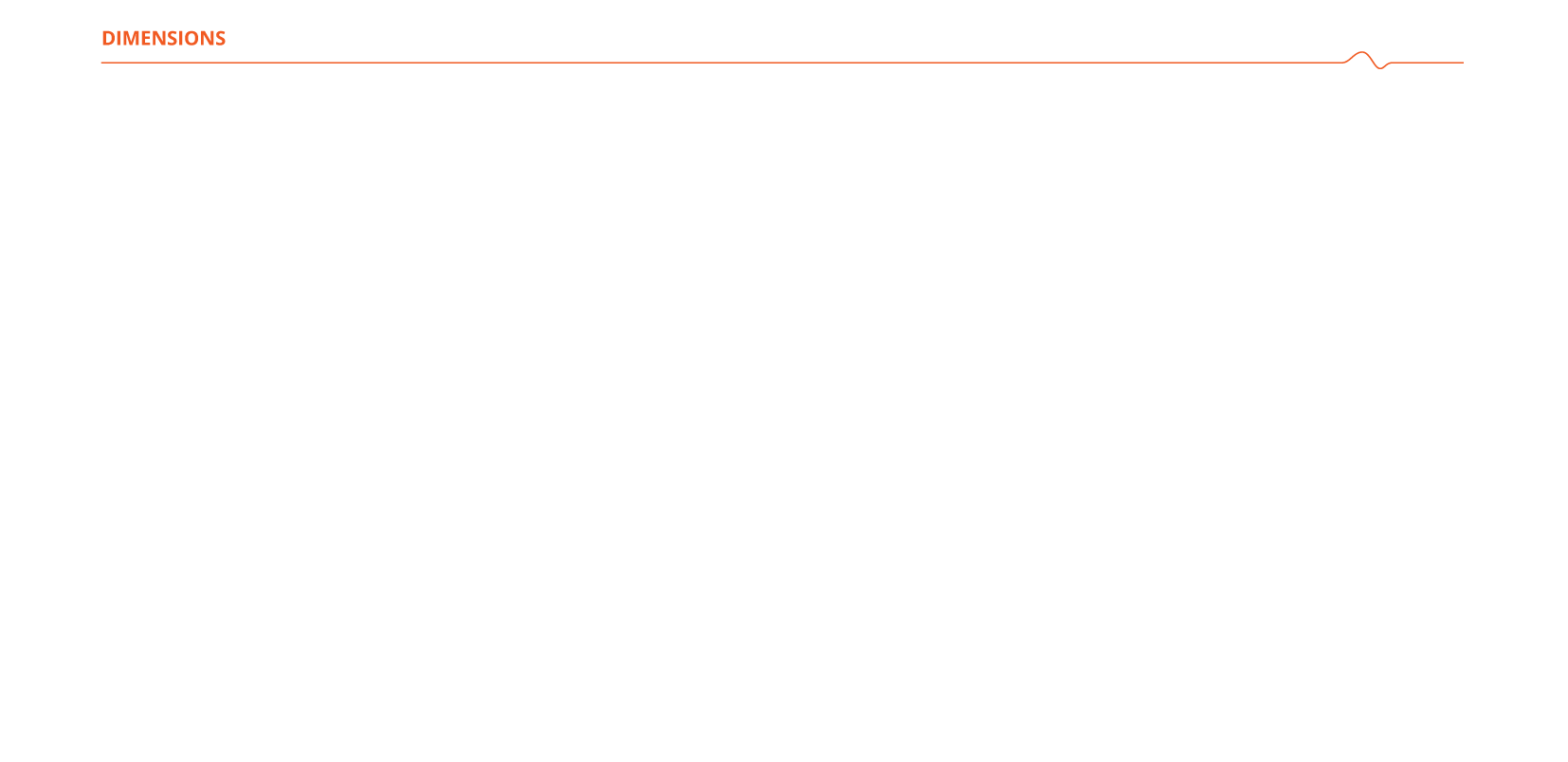

| DIMENSIONS | Ø26*16(H)mm(Cear Flat Cover), Ø25*27(H)mm(Frosted Dome Cover) |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | DMX to SPI |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
