Specification
SPECIFICATION
| MODEL | DIRECT VIEW TUBE |
| OPERATING VOLTAGE | AC 100-240V |
| POWER CONSUMPTION | 8W/305mm, 32W/1220mm (16 PXL Max/1220mm) |
| LED TYPE | SMD |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 80min |
| PRODUCT EFFICACY | 38Im/W@3000K |

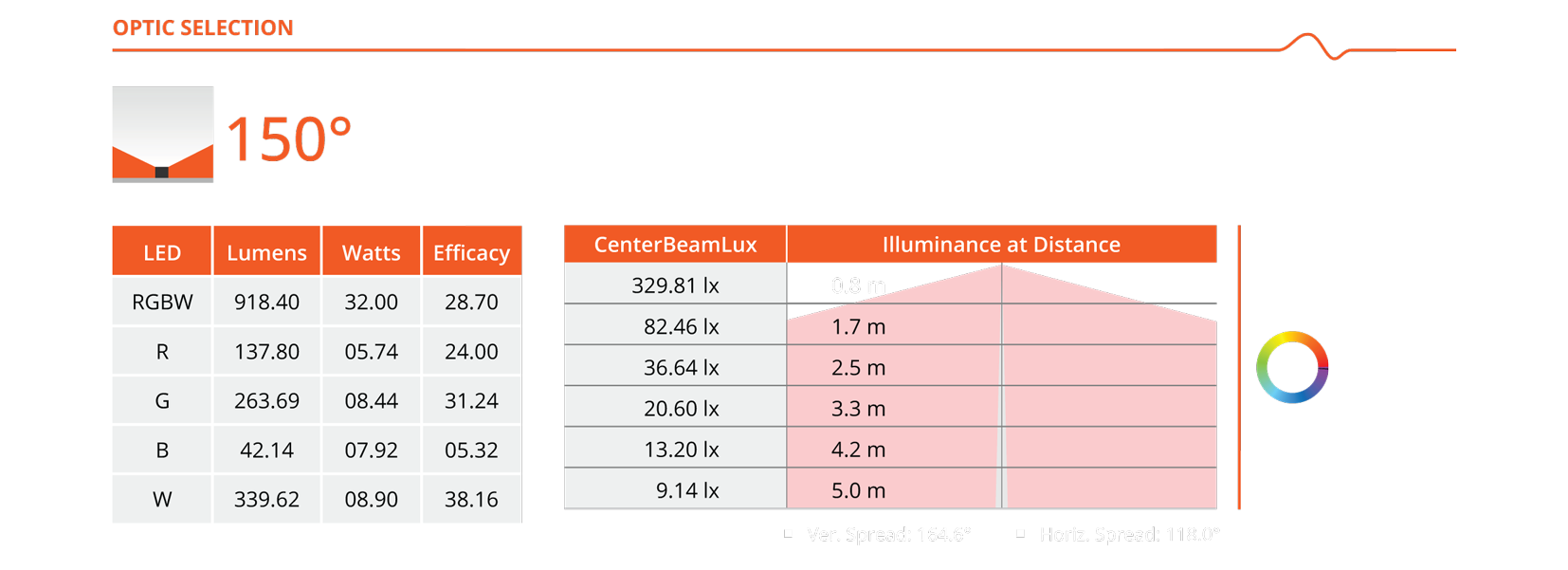

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 150° |
| MATERIAL | Aluminum + PMMA Cover |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |

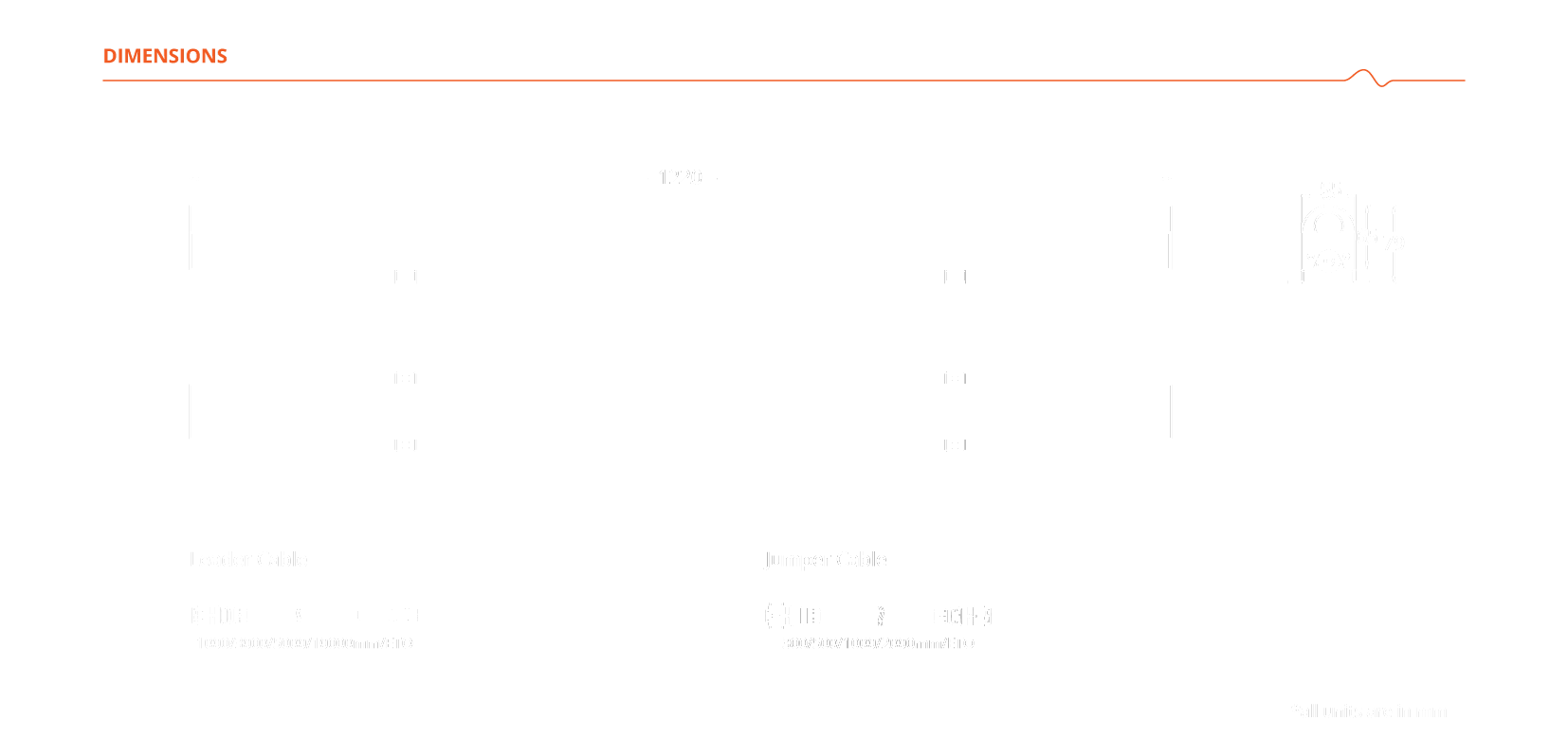

| DIMENSIONS | 1220(L)*55(W)*65(H)mm 305/610/1000mm available |
| CABLE LENGTH | 150mm |
| CONTROL SYSTEM | DMX/RDM |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
