Specification
SPECIFICATION
| MODEL | DIRECT VIEW PIXEL MIDI SLIM |
| OPERATING VOLTAGE | 24V DC, 48V DC |
| POWER CONSUMPTION | 12W/1220mm (6PXL/1220mm, 10PXL/1220mm, 20PXL/1220mm, 60PXL/1220mm) |
| LED TYPE | SMD |
| COLOUR TEMP OPTION | 2400K, 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 72Im/W@3000K |

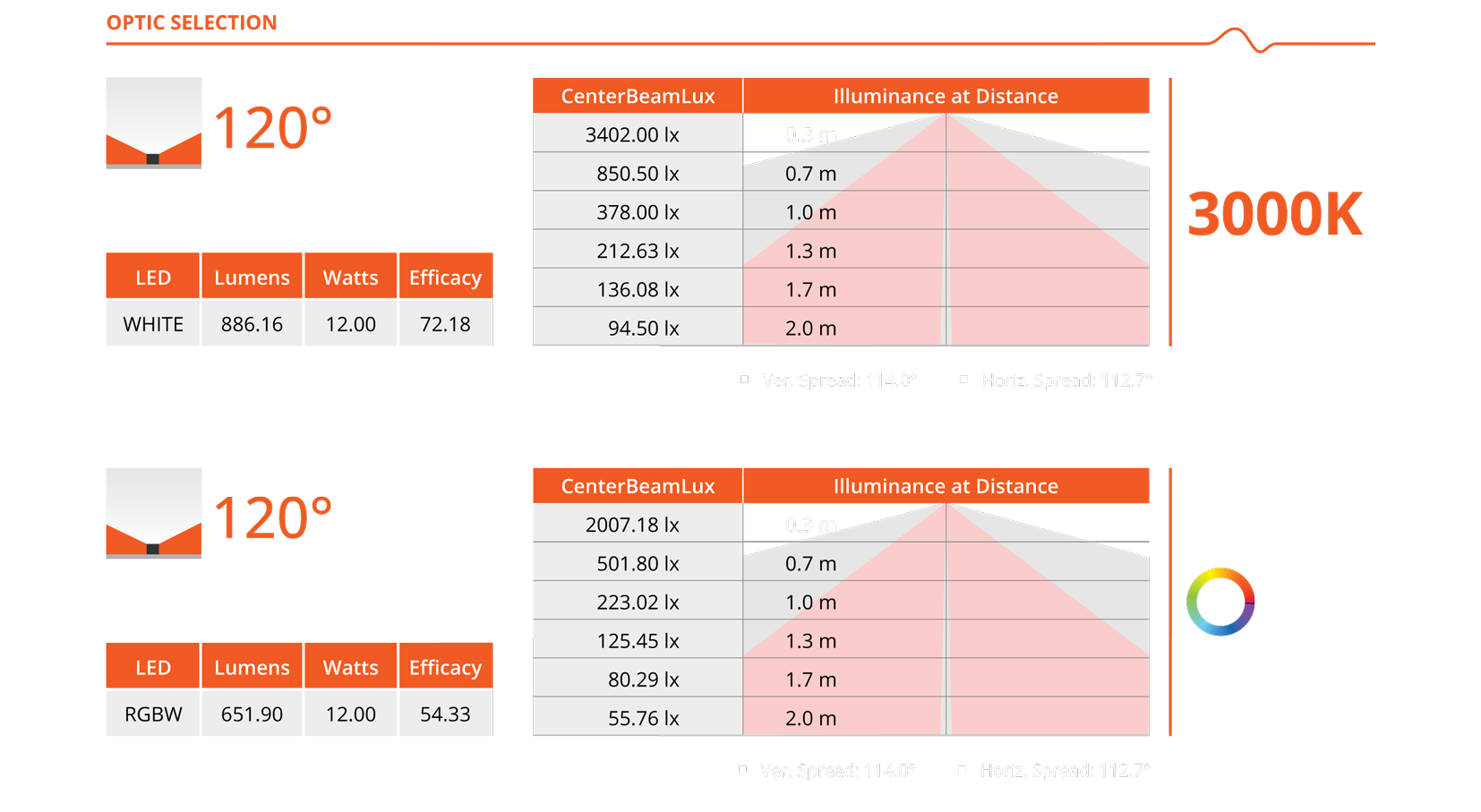

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 120° |
| MATERIAL | PMMA + AL |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | 25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |

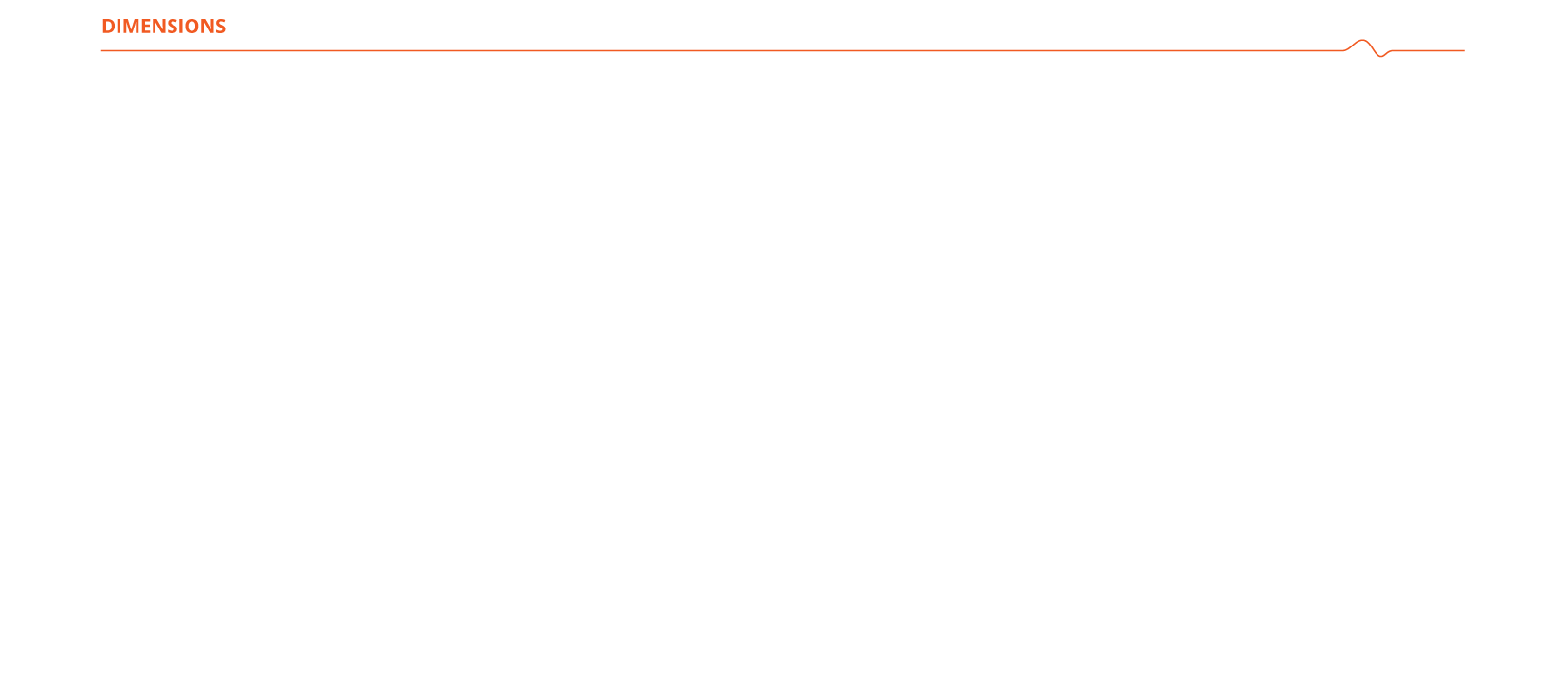

| DIMENSIONS | 1220(L)*24(W)*50(H)mm(Flat Diffuser), 305/610/1000mm available, 1220(L)*24(W)*55(H)mm(Dome Diffuser), 305/610/1000mm available |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DMX/RDM, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
