Specification
SPECIFICATION
| MODEL | ARCHI MINI |
| OPERATING VOLTAGE | 24V DC |
| POWER CONSUMPTION | 3W, 5W |
| LED TYPE | High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K |
| CRI | 80min, 90min |
| PRODUCT EFFICACY | 63lm/W@3000K |

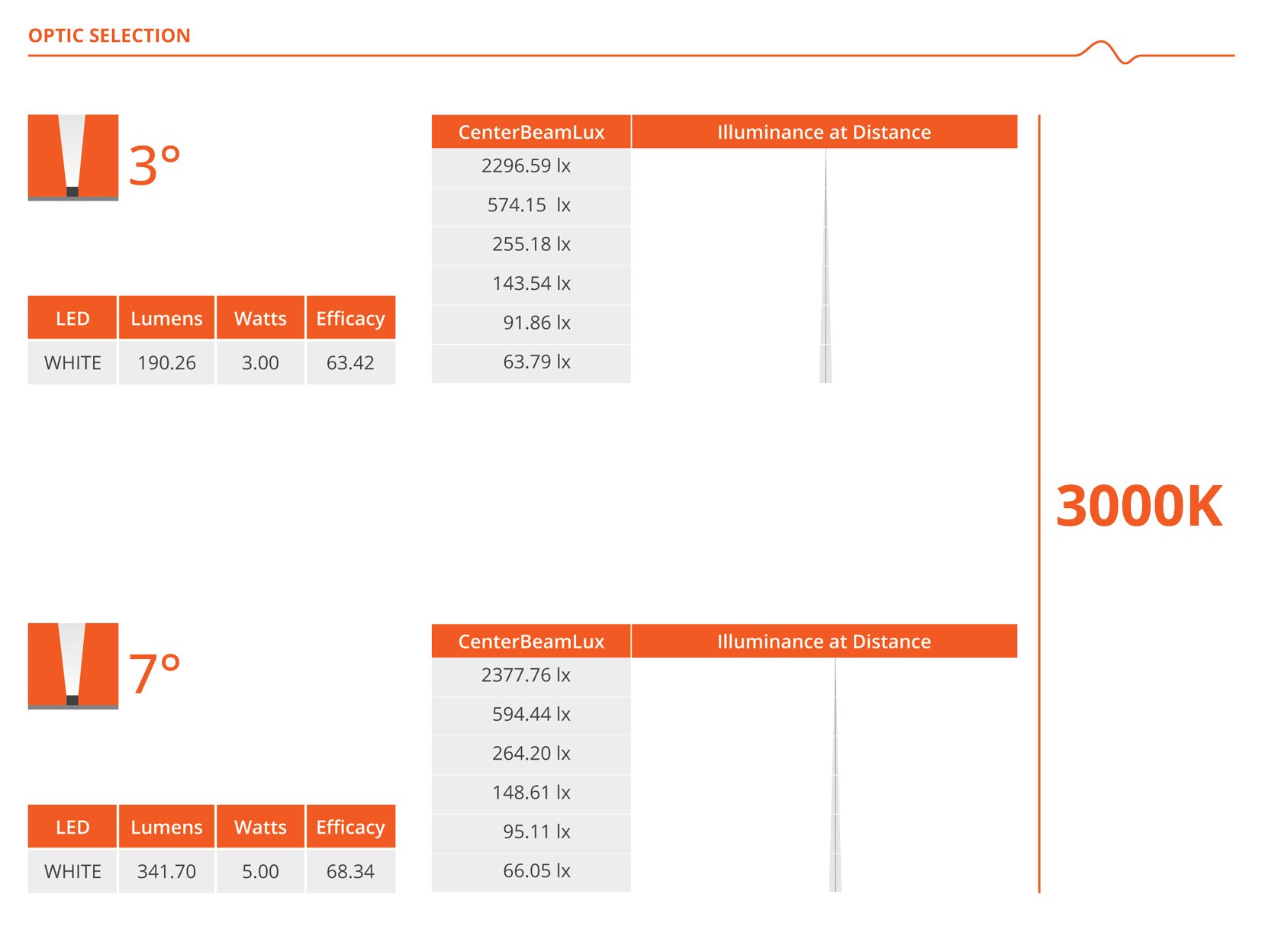

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 3°, 7° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 86 (L)*56(W)*110 (H)mm (with bracket)(Square), 86 (L)*56(W)*112 (H)mm (with bracket)(Circle) |
| CABLE LENGTH | 500mm |
| CONTROL SYSTEM | Non Dim/0-10V/DMX - RDM |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
