Specification
SPECIFICATION
| MODEL | ARCHI 120 |
| OPERATING VOLTAGE | 24V DC, 48V DC |
| POWER CONSUMPTION | 25W MAX |
| LED TYPE | 4 in 1 High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K RGB, RGBW |
| CRI | 80min |
| PRODUCT EFFICACY | 60lm/W@3000K |

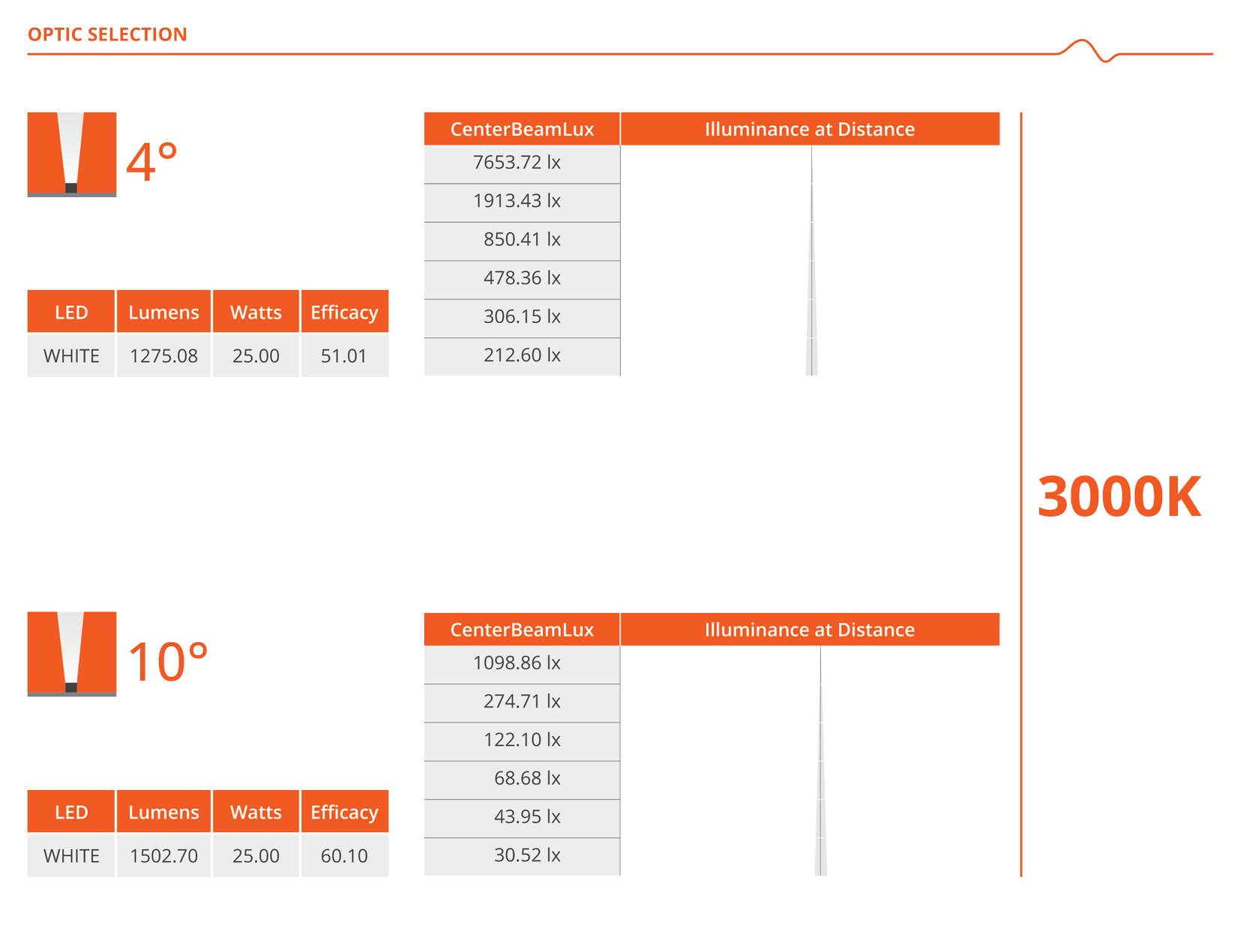

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 4°, 10°, 25°, 40° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | ф120*100(H)mm, ф127*146(H)mm (with top hat) |
| CABLE LENGTH | 1000mm |
| CONTROL SYSTEM | ON/OFF, DMX/RDM |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
