Specification
SPECIFICATION
| MODEL | MODULER FLEX |
| OPERATING VOLTAGE | 24V DC, 48V DC |
| POWER CONSUMPTION | 5W/Unit, Max 6units Per Meter |
| LED TYPE | High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White |
| CRI | 80min |
| PRODUCT EFFICACY | 70Im/W@3000K |

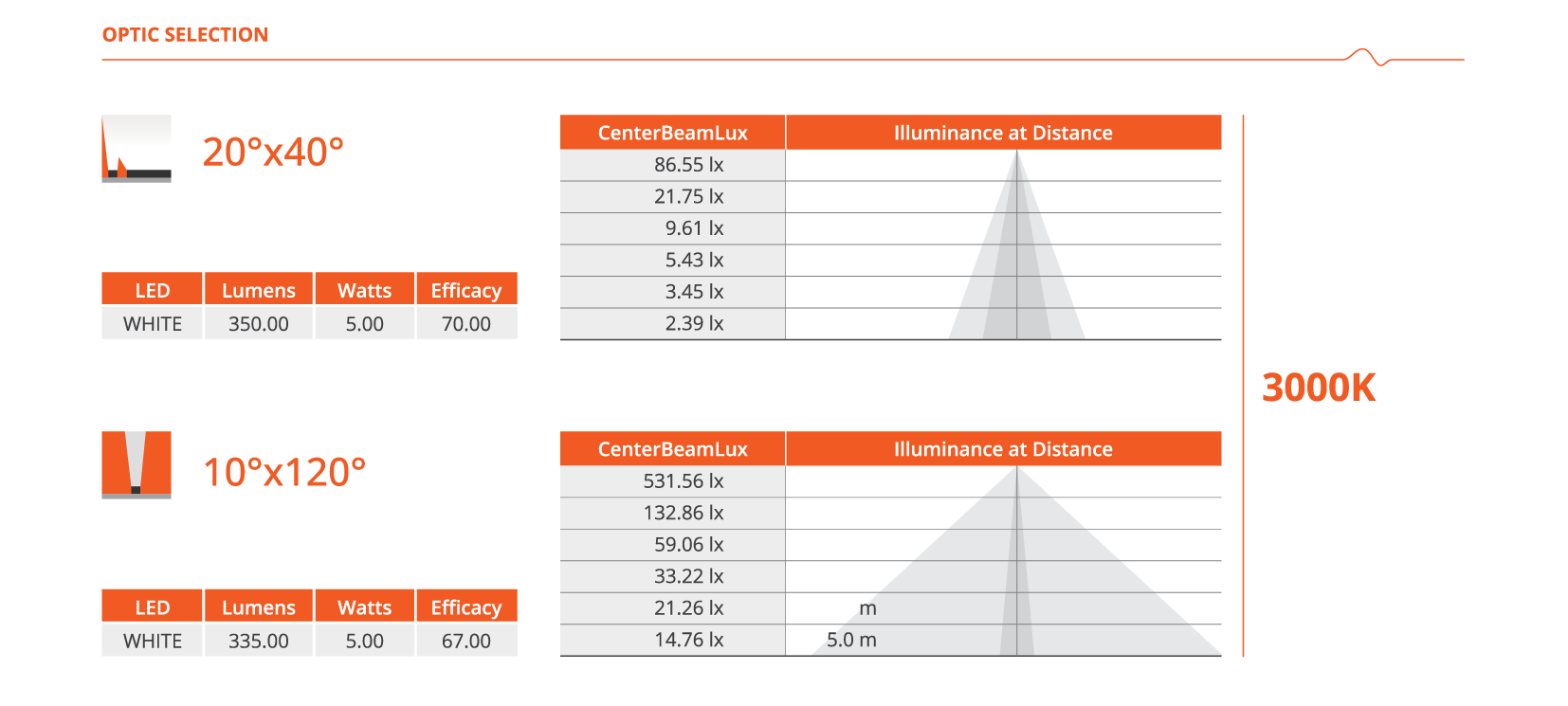

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 20°*40°, 35°, 45°, 60°, 10°*120° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 116(L)*25(W)*26(H)mm, 116(L)*25(W)*28.5(H)mm(Flat Bracket) |
| CABLE LENGTH | 150mm |
| CONTROL SYSTEM | ON/OFF, DMX/RDM, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
