Specification
SPECIFICATION
| MODEL | IP COVE PM |
| OPERATING VOLTAGE | 24V DC |
| POWER CONSUMPTION | 8W/305mm, 32/1220mm |
| LED TYPE | SMD |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White, RGB |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 54Im/W@4000K |

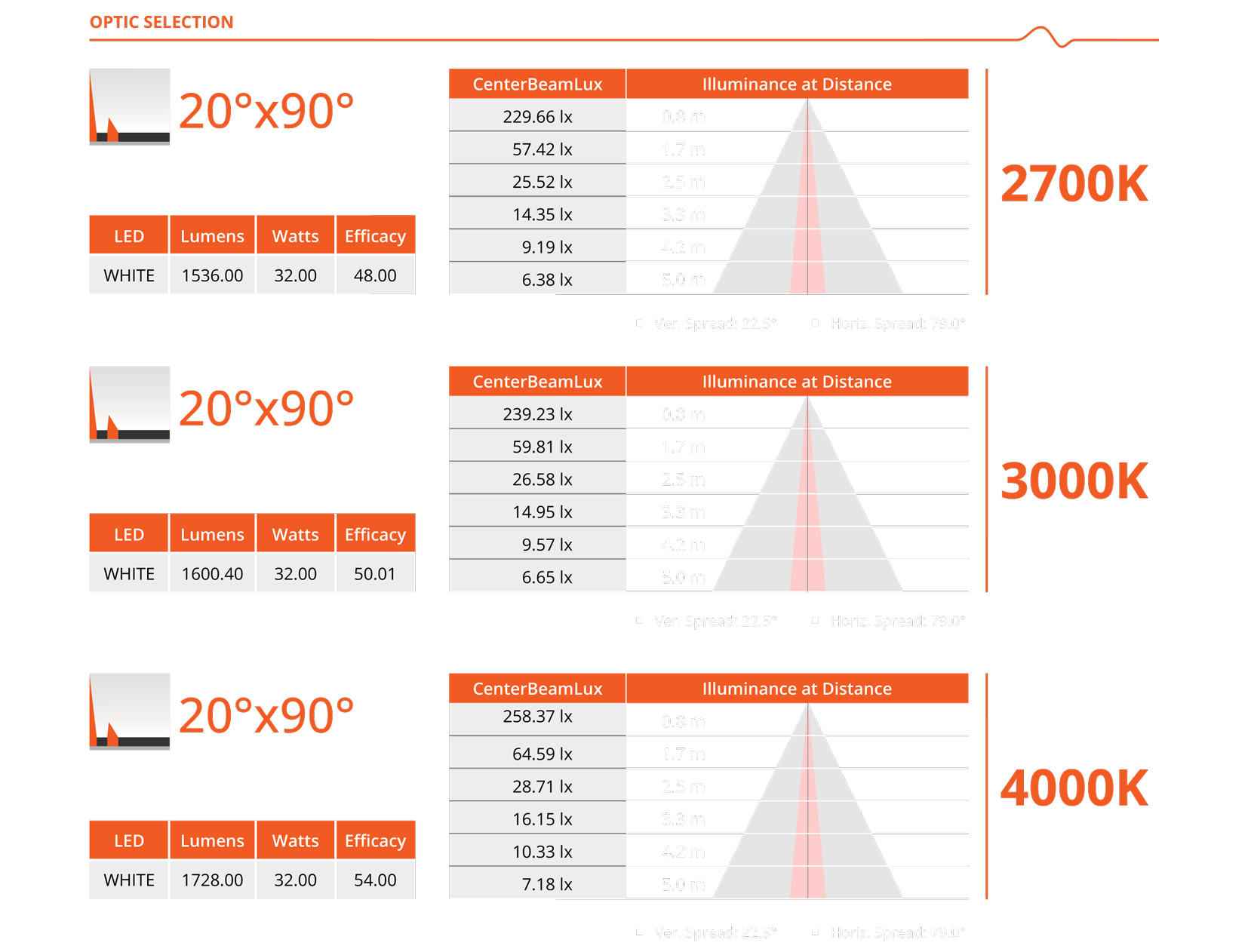

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 20°*90°, 40°*90°, 60°*90° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 1220(L)*25(W)*28.5(H)mm(Flat Bracket), 1220(L)*25(W)*48(H)mm(Adjustable Bracket), 305/610/915/1000mm ETO available |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DMX/RDM, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
