Specification
SPECIFICATION
| MODEL | INSTA SPOT 220 SQ |
| OPERATING VOLTAGE | 24V DC, AC200~240V |
| POWER CONSUMPTION | 60W |
| LED TYPE | High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 3500K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 72.75lm/W@3000K |

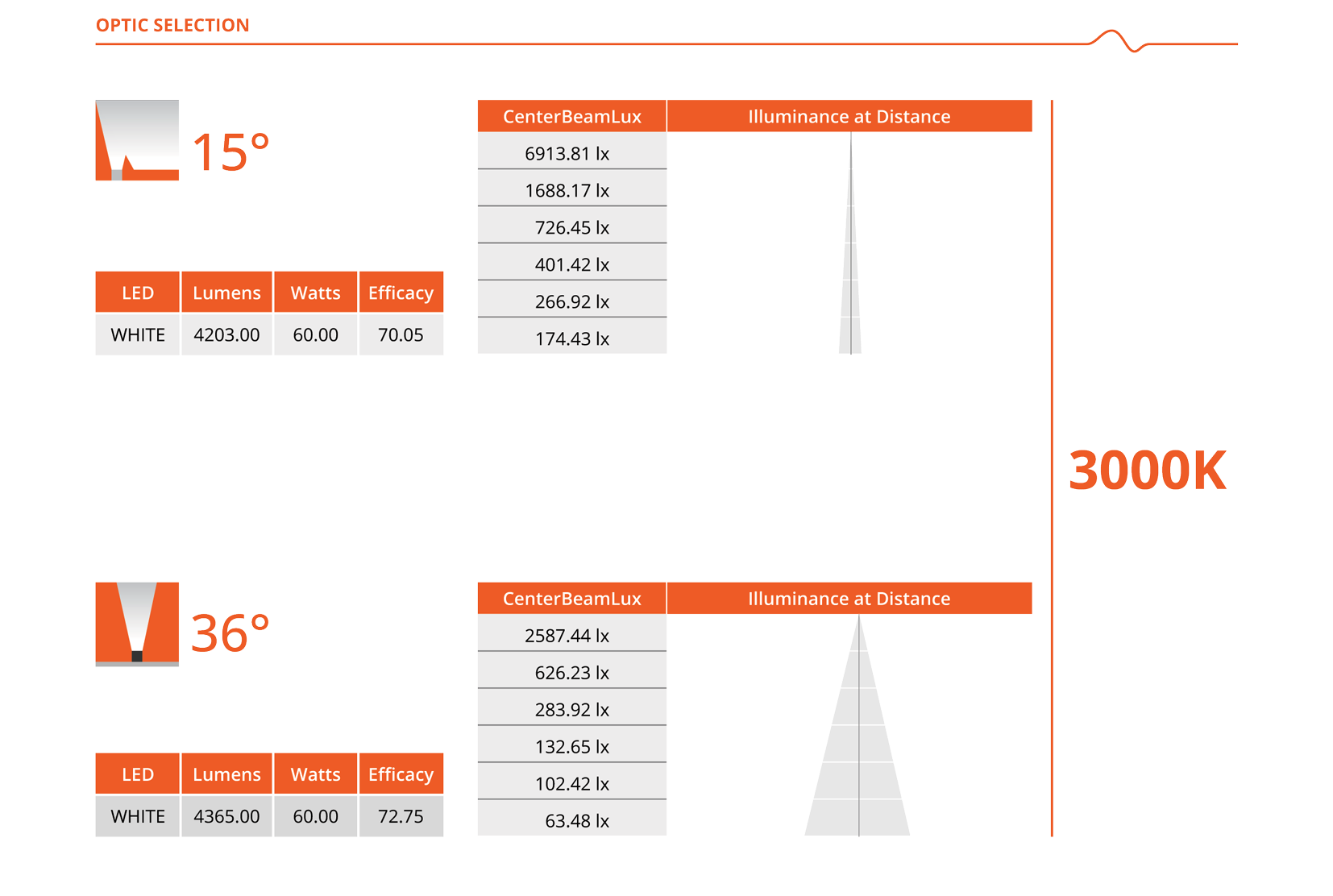

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 10°, 15°, 24°, 36°, 45°, 8°*60°, 20°*40° |
| MATERIAL | Aluminum + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000~7,000 hours at 70% Lumen Maintenance |
| DIMENSIONS | 291(L)*220(W)*95(H)mm |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DALI, DMX, Triac Dim, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
