Specification
SPECIFICATION

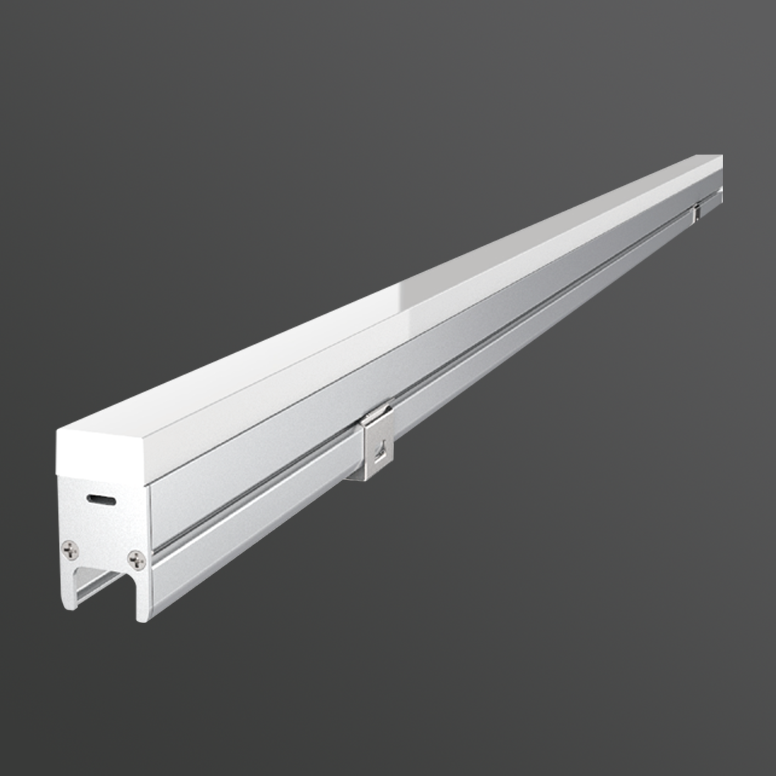

| MODEL | INSTA LINEAR PL DC MILKY |
| OPERATING VOLTAGE | 24V DC, 48V DC |
| POWER CONSUMPTION | 12W/1000mm, 14W/1000mm (1PXL/M, 8PXL/M, 16PXL/M) |
| LED TYPE | SMD, High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW |
| CRI | 90min, 80min |
| PRODUCT EFFICACY | 70lm/W@3000K |
| FULL WIDTH AT HALF MAXIMUM (OPTICS | 120° |
| MATERIAL | Aluminum + Tempered Glass + PMMA |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 1000(L)*24(W)*50(H)mm (U Type Bracket), 1000(L)*24(W)*62(H)mm (Adjustable Bracket), 300/500/900/1200mm available |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DMX, 0-10V Dim |
| MOUNTING TYPE | Surface |
| IP RATING | IP66, IP67 |
