Specification
SPECIFICATION

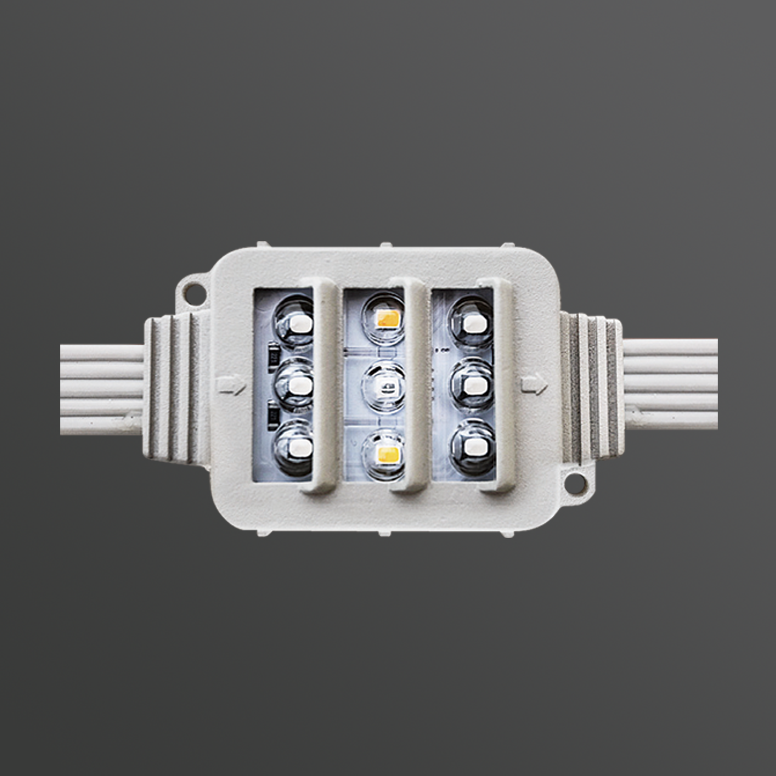

| MODEL | INSTA DOT 42SQ |
| OPERATING VOLTAGE | 24V DC |
| POWER CONSUMPTION | 2W (32 PXL Max/2M) |
| LED TYPE | SMD |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW, RGBA |
| CRI | 80min |
| PRODUCT EFFICACY | 55lm/W@3000K |
| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 120° |
| MATERIAL | PC |
| OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | ф 67.2(L)*42(W)*14.8(H)mm |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | DMX |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
