Specification
SPECIFICATION

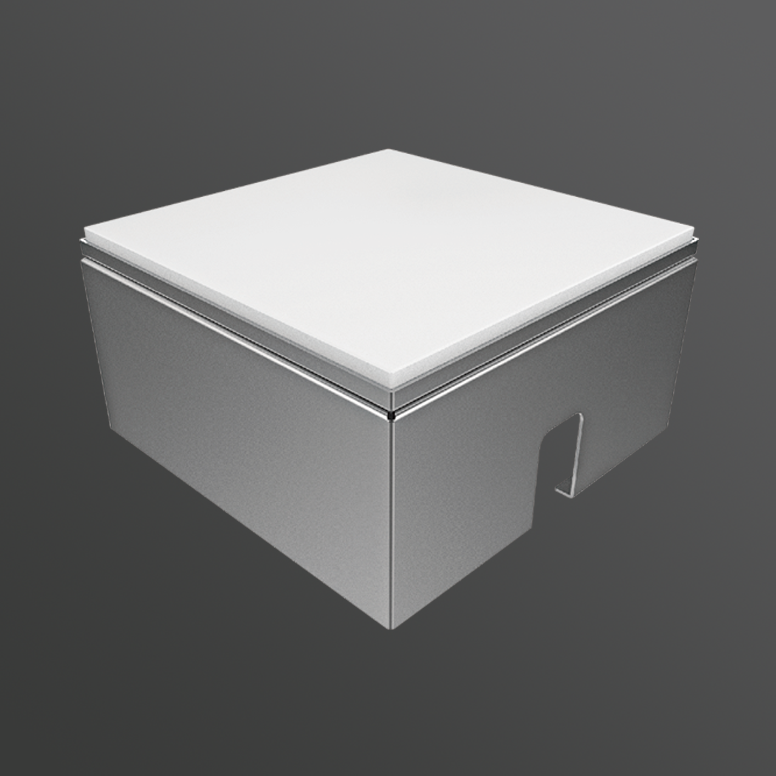

| MODEL | INPRESS FROSTED SQ |
| OPERATING VOLTAGE | 12V DC, 24V DC |
| POWER CONSUMPTION | 3W/ 100*100mm, 4W/150*150mm, 5W/200*200mm, 10W/300*300mm |
| LED TYPE | SMD |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K Tunable White, RGB, RGBW |
| CRI | 80min |
| PRODUCT EFFICACY | 45lm/W@3000K |

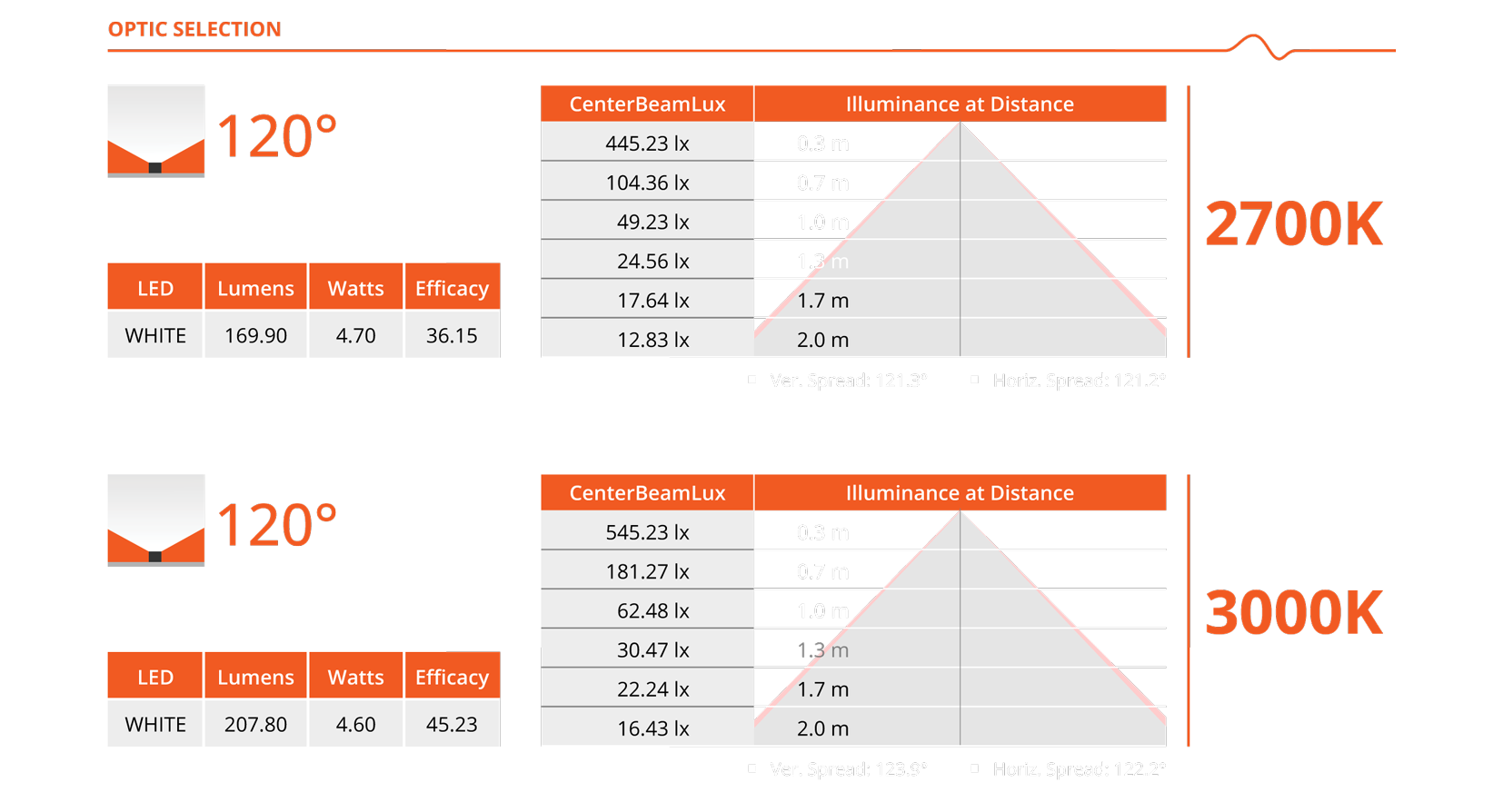

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 120° |
| MATERIAL | Stainless Steel + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 200(L)*200(W)*55(H)mm, 100mm*100mm/150mm*150mm/300mm*300mm/ETO available |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, ON/OFF By Gravity, DMX/RDM, 0-10V Dim |
| MOUNTING TYPE | Recessed |
| IP RATING | IP67, IK10 |
