Specification
SPECIFICATION
| MODEL | IN 173 |
| OPERATING VOLTAGE | 24V DC |
| POWER CONSUMPTION | 9W |
| LED TYPE | High Power LED |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K |
| CRI | 80min |
| PRODUCT EFFICACY | 81lm/W@3000K |

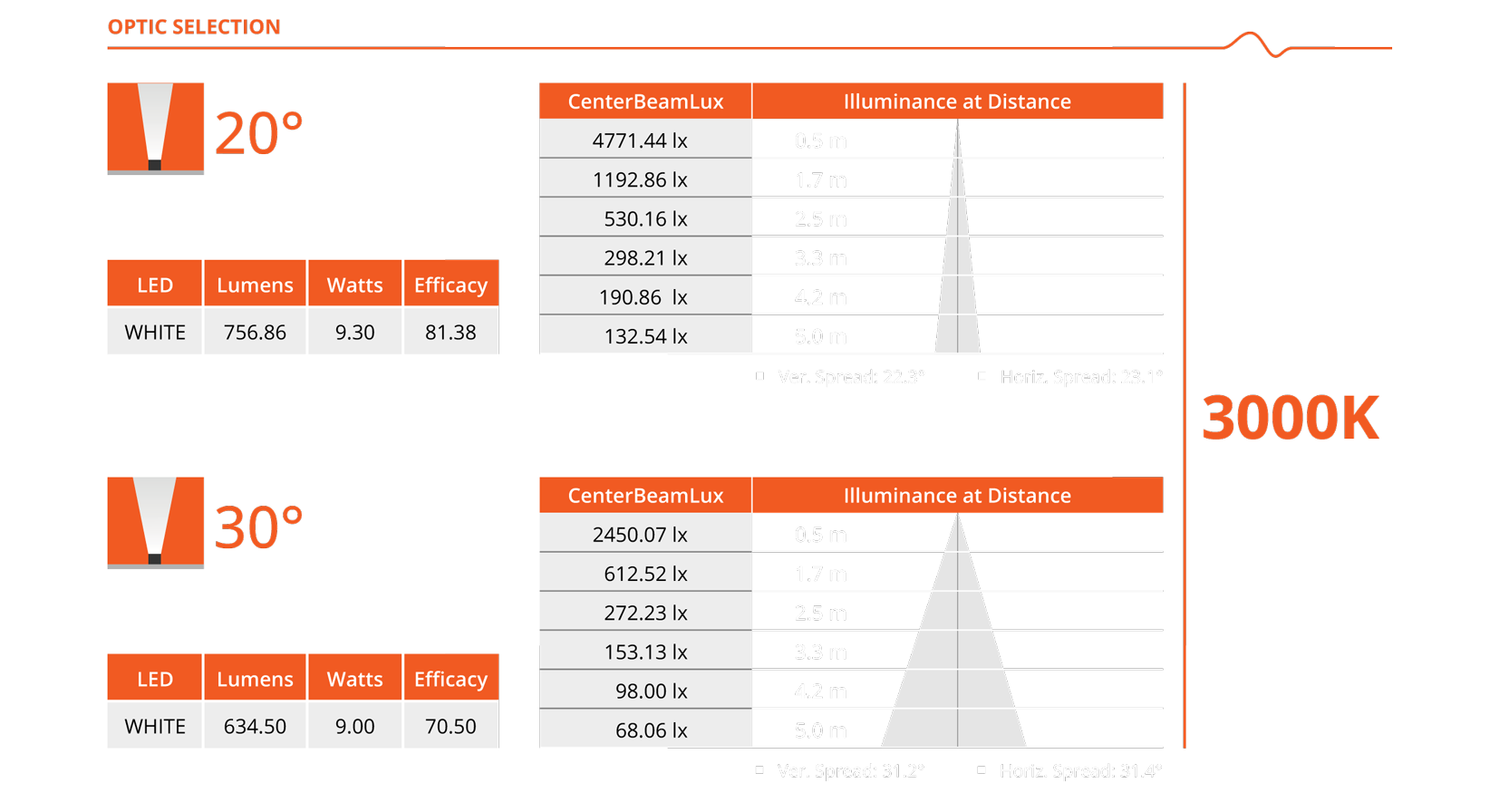

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 15°, 20°, 30°, 45° |
| MATERIAL | Aluminum + Stainless Steel 316L + Tempered Glass |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | Ø173*150 (H)mm |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, 0-10V Dim |
| MOUNTING TYPE | Recessed |
| IP RATING | IP67, IK10 |
