Specification
SPECIFICATION
| MODEL | DIRECT VIEW PIXEL-B |
| OPERATING VOLTAGE | 24V DC |
| POWER CONSUMPTION | 6.25W/25 Pixels, 16W/64 Pixels |

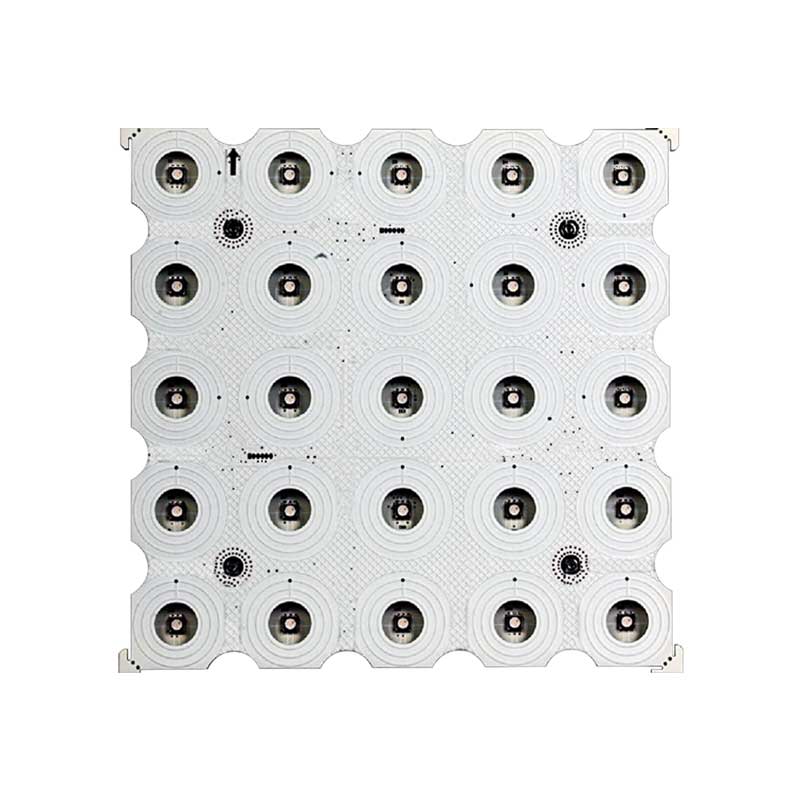

| LED TYPE | SMD |
| COLOUR TEMP OPTION | (24 bit) 2700K, 3000K, 4000K, 5000K, RGB |
| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 120° |
| MATERIAL | PCB |
| AMBIENT OPERATING TEMPERATURE | -10°C ~ +40°C |
| STORAGE TEMPERATURE | -20°C ~ +60°C |
| LIFETIME | 50,000 hours/L70 at 25°C |
| DIMENSIONS | 175 (L)*175(W)*10(H)mm@25pixels, 250 (L)*250(W)*10(H)mm@64pixels |
| CONTROL SYSTEM | DMX (Auto Addressing) |
| MOUNTING TYPE | Surface |
| IP RATING | IP20 |
