Continues-25 IP
q

Continues-25 IP Optic

Creating vertical lines of light of considerable depth, projectIng the light beam with punctual and incisive light. The Continues-25 IP Optics Line collection, the latest addition to the Profile family. Wall Washer, facade, light enhancement with narrow beams are just some of the possibilities offered by the products of this series.

Thanks to the resin process IP65 and IP67 products can be permanently installed outdoors for the enhancement of buildings and monuments.

Download Catalogue
Categories:, , , Tag:

Specification

SPECIFICATION
MODEL CONTINUES -25 IP OPTICS
OPERATING VOLTAGE 24V DC
POWER CONSUMPTION 12W/1000mm, 14W/1000mm, 20W/1000mm, 24W/1000mm
LED TYPE SMD, High Power LED
COLOUR TEMP OPTION 2700K, 3000K, 4000K, 5000K, Tunable White, RGB, RGBW
CRI 80min
PRODUCT EFFICACY 70lm/W@3000K
FULL WIDTH AT HALF MAXIMUM (OPTICS) 10°, 25°, 60°, 15°*50°
MATERIAL Extruded Aluminium, Diecust Aluminium, Polyurethane Encapsulated
AMBIENT OPERATING TEMPERATURE -20°C ~ +55°C
STORAGE TEMPERATURE -25°C ~ +60°C
LIFETIME 50,000 hours/L70 at 25°C/td>
DIMENSIONS 1000(L)*25(W)*25(H)mm (U Type Bracket)
CABLE LENGTH 300mm
CONTROL SYSTEM ON/OFF, DMX, 0-10V
MOUNTING TYPE Surrface
IP RATING IP67

Features & Options

q

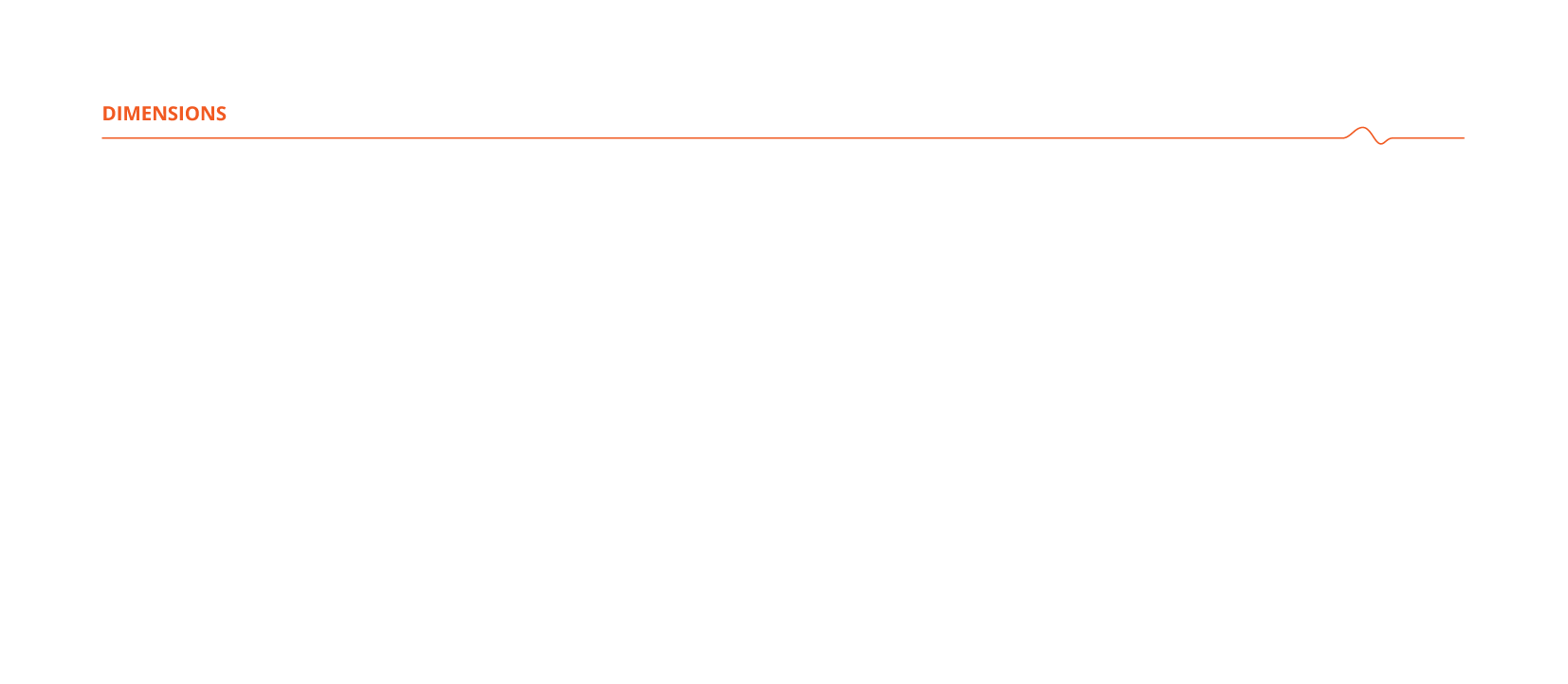

Dimensions

q

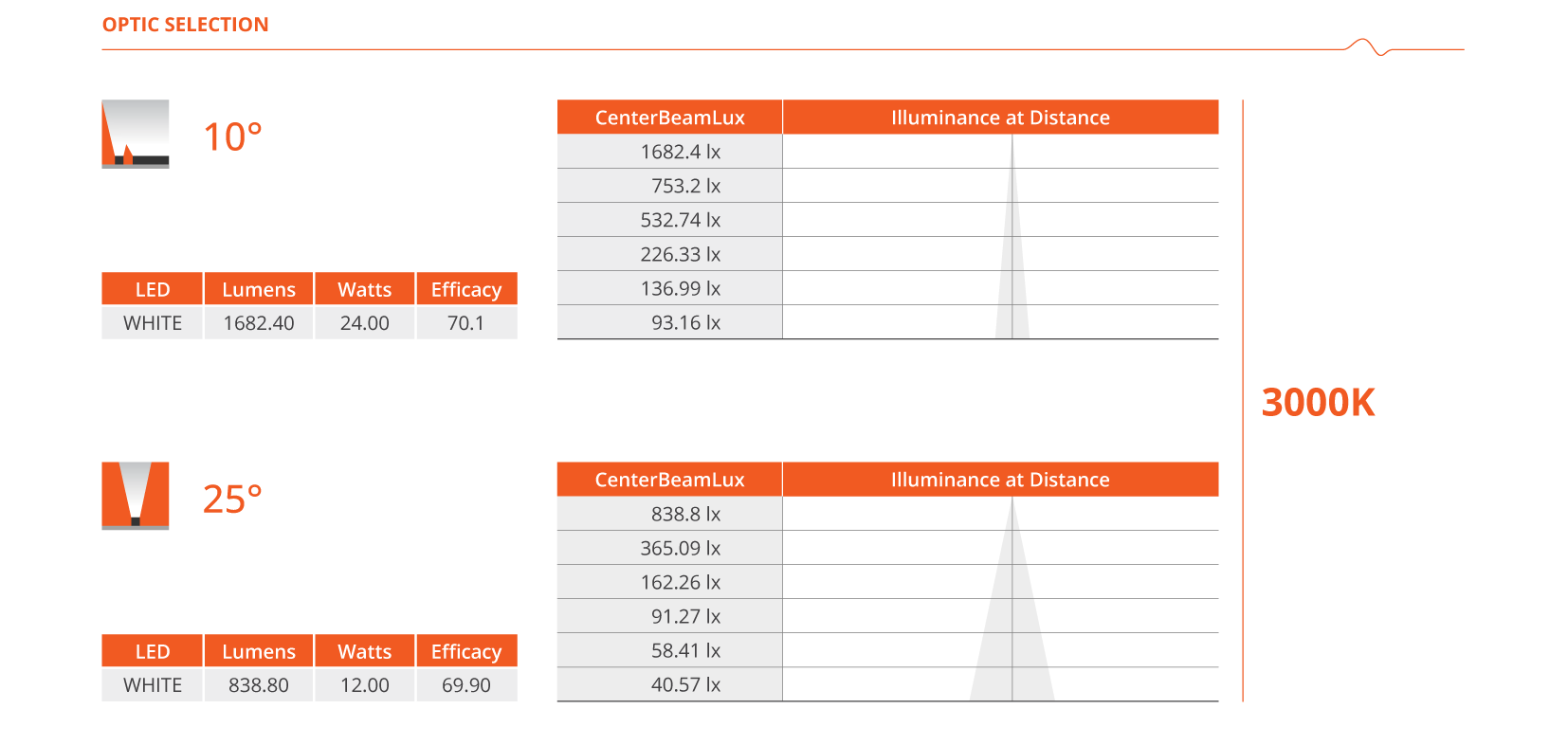

Optic Selection

q
