Specification
SPECIFICATION

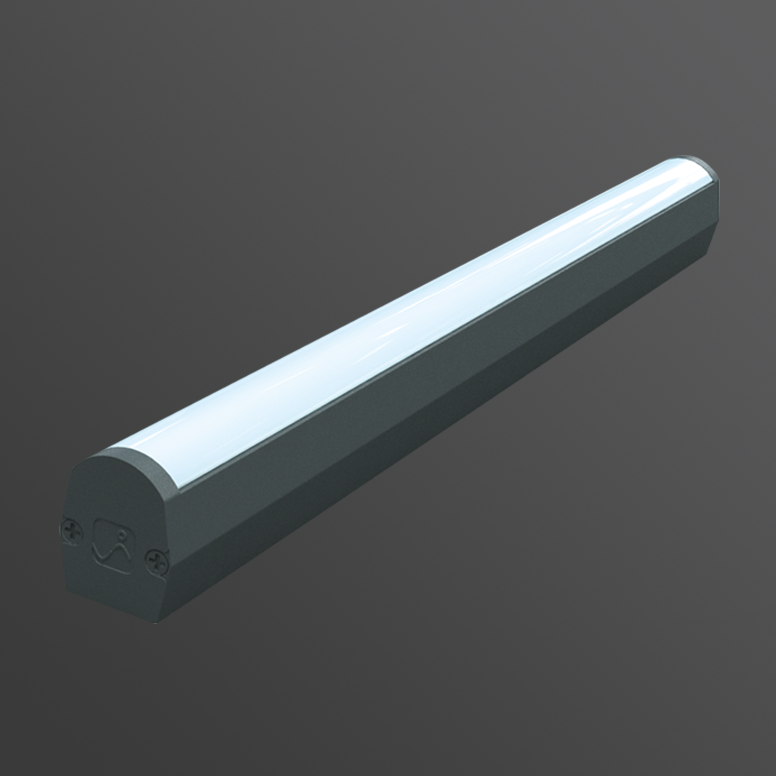

| MODEL | CONTINUES-25 DIRECT VIEW TUBE |
| OPERATING VOLTAGE | 24V DC |
| POWER CONSUMPTION | 9.6W/1000mm, 14.4W/1000mm (16PXL Max/M) |
| LED TYPE | SMD |
| COLOUR TEMP OPTION | 2700K, 3000K, 4000K, 5000K, 6000K, RGB, RGBW |
| CRI | 80min, 90min |
| PRODUCT EFFICACY | 38Im/W@RGBW |

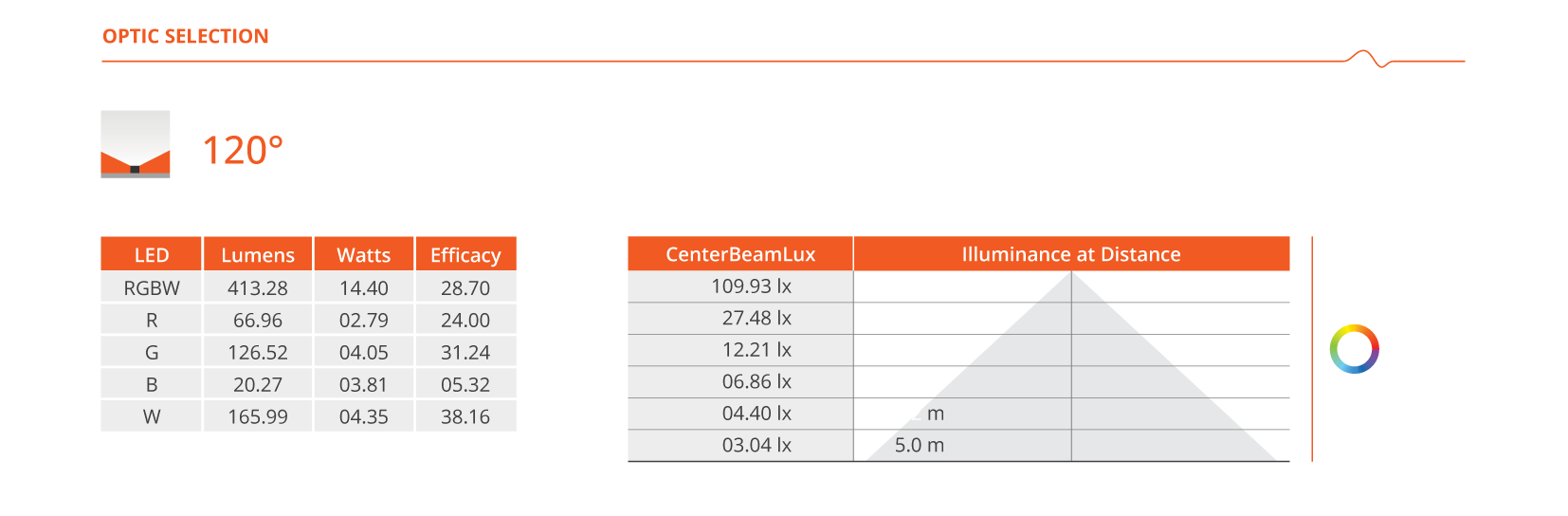

| FULL WIDTH AT HALF MAXIMUM (OPTICS) | 120° |
| MATERIAL | PMMA + AL Body |
| AMBIENT OPERATING TEMPERATURE | -20°C ~ +55°C |
| STORAGE TEMPERATURE | -25°C ~ +60°C |
| LIFETIME | 50,000 hours/L80 at 25°C |

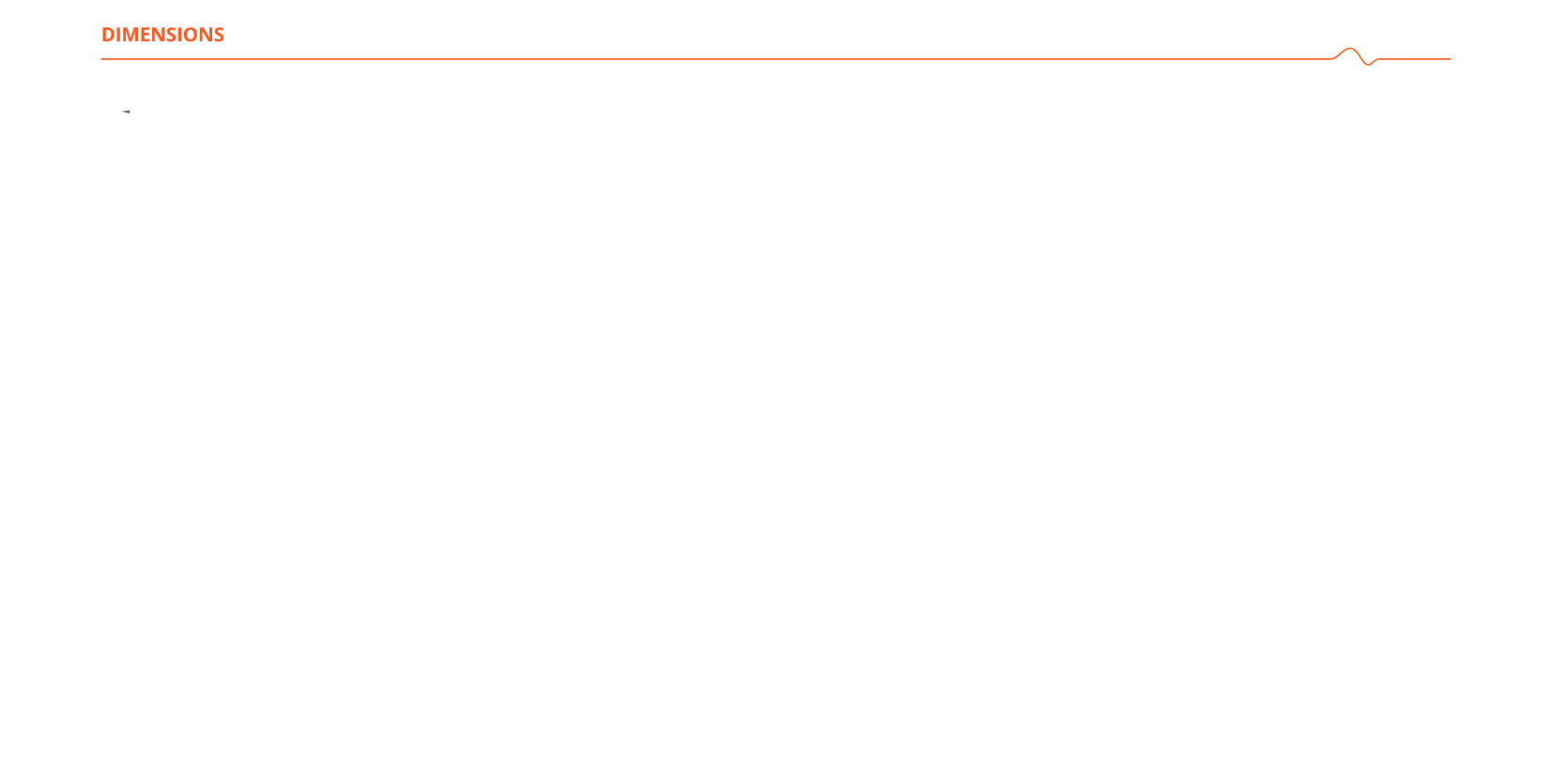

| DIMENSIONS | 1000(L)*25(W)*30(H)mm |
| CABLE LENGTH | 300mm |
| CONTROL SYSTEM | ON/OFF, DMX |
| MOUNTING TYPE | Surface |
| IP RATING | IP66 |
